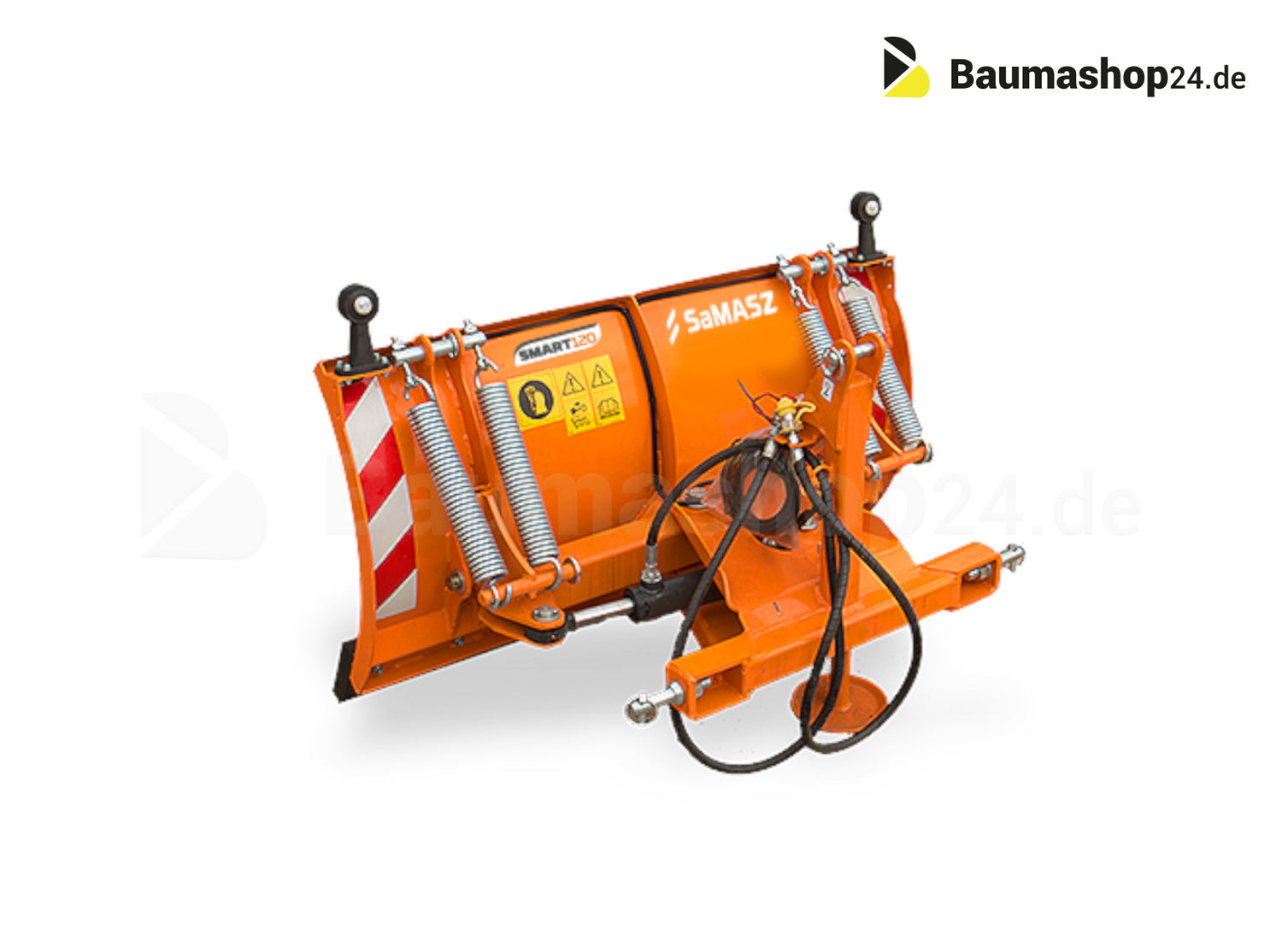

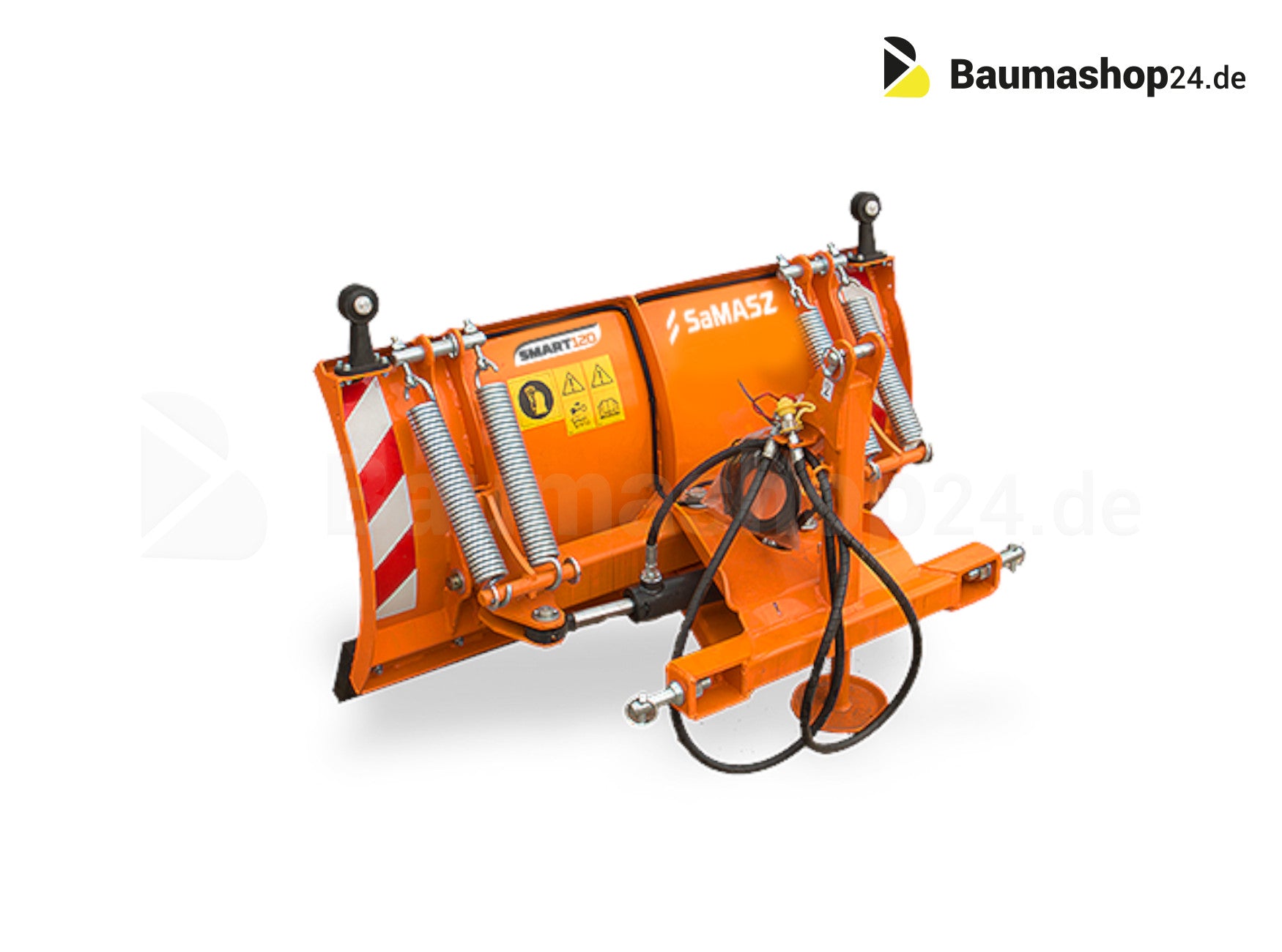

Snow plow SMART 120 SaMASZ Saphir for wheel loaders up to 1.9t

SMART single blade snow plow with automatic spring mechanism and Saphir SaMASZ bar

SaMASZ SNOW PLOWS:

From the super-light to the super-heavy series: SaMASZ snow plows are used in a variety of ways on city and country roads, sidewalks and parking lots. A comprehensive range of adapters and add-on frameworks enables use on almost any carrier vehicle.

Due to the wide range of possible uses, the robust design and the many possible special equipment, SaMASZ snow plows are ideal devices for clearing snow in winter service.

Basic equipment SMART : Rolled blade body • Infinitely variable hydraulic tilting • Spring automatic (4 springs) • Suspension for three-point cat. I • Scraper bar (optional) • Electrical connection 12 V (cigarette lighter) • LED lighting 12 V or 24 V • Parking support • KTL layer + powder coating .

Technical specifications:

working width max./min. [cm]: 120/102
Transport width max./min. [cm]: 122/112
Share height [cm]: 64
Suspension: Cat. I (standard) or Cat. I narrow 400mm (option) - clearance between lower links
Scraper parts: 1
Collision protection: Spring automatic
Attack angle: 30°
hydraulic tilting: up to 35°
required number of hydraulic connections: 1 x DW
Dimensions [cm] length / width / height: 68 / 122 / 76
Weight [kg]: 120
