ROCCA  |  SKU: SL1300-090130-2300010

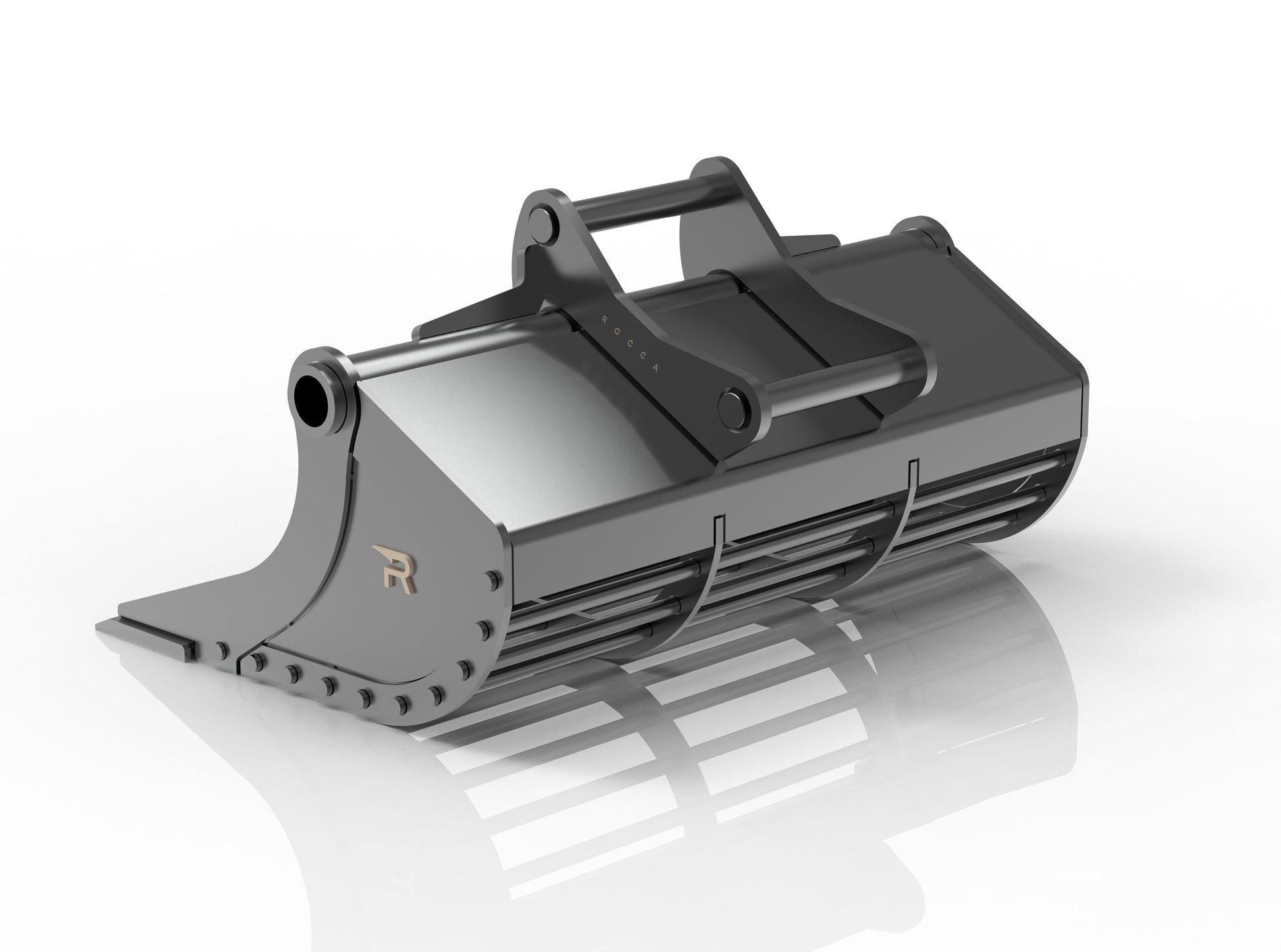

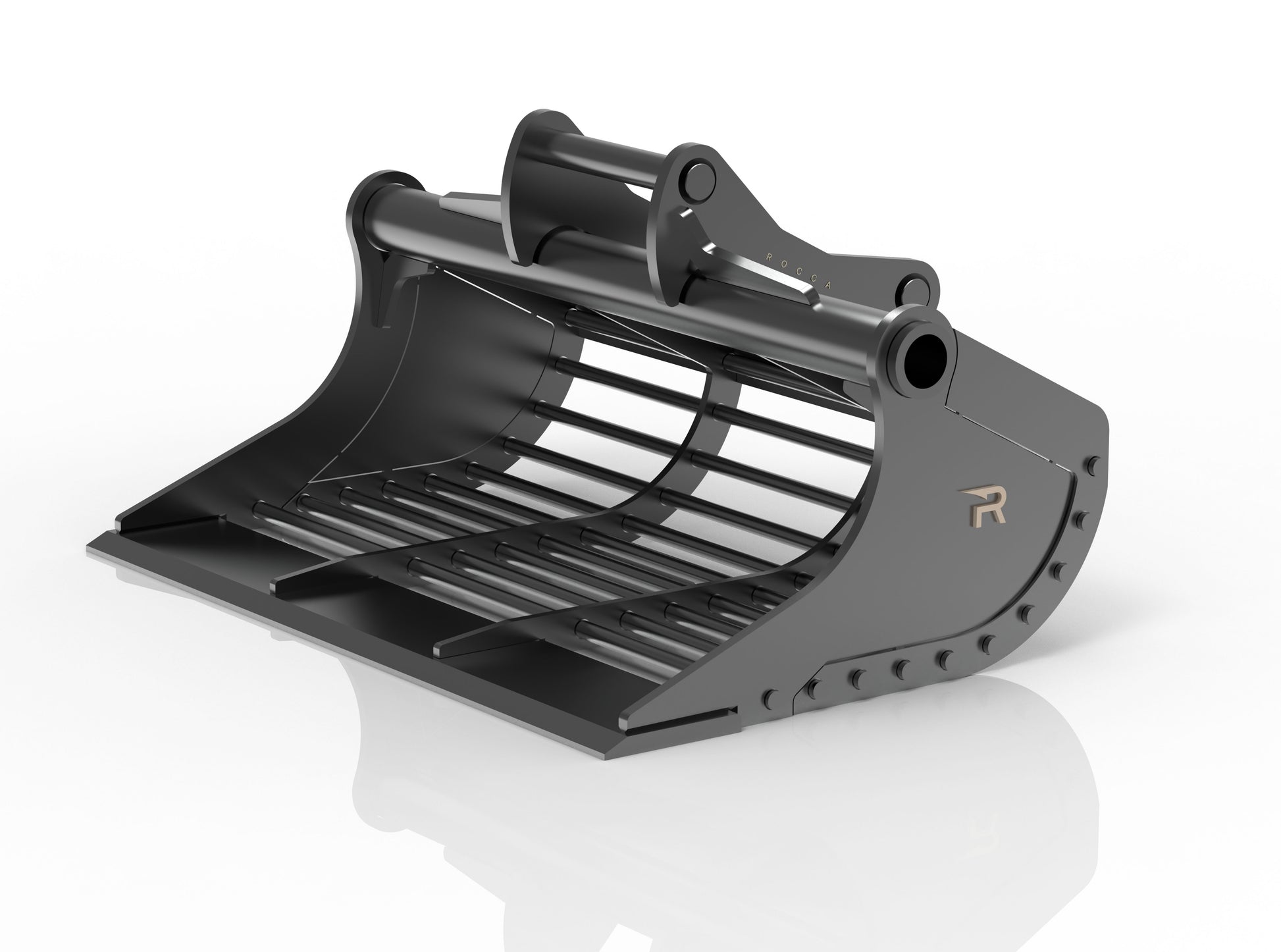

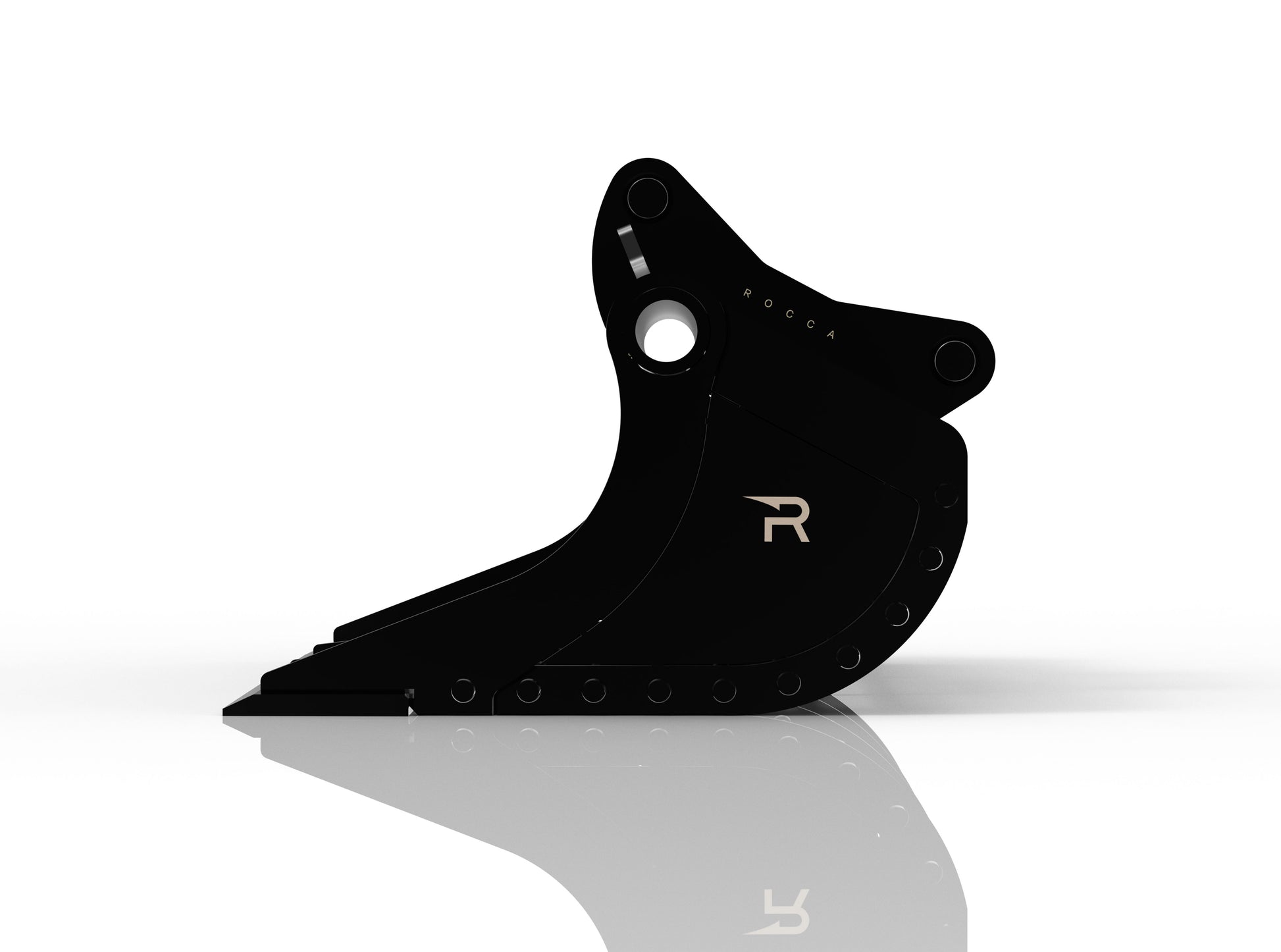

ROCCA Tiltrotator Grading Bucket

Regular price2.830,00 €
Order item 7-10 weeks delivery time
Machine weight
Recording
Cutting width

Description

ROCCA® Sorting Grapple – 9–25 t · robust, precise, versatile

The ROCCA® sorting grapples are the first choice for sorting, loading, and light breaking of material in demolition, civil engineering, and recycling. The wear-resistant construction made of HB 400 (shells/reinforcements) and HB 500 (cutting edges) provides long service life and precise control – even in continuous use.

For excavators 9–25 t HB 400 / HB 500 Tiltrotator compatible MS · OQ · SW mounts

Advantages at a glance

  • Efficient sorting: open mesh geometry for clean separation and high loading capacity.
  • Robust design: low-wear edges/reinforcements for long service life.
  • Control & Visibility: optimized design for precise work with material.
  • Flexible in your fleet: available with MS, OQ, and SW mounts.

Technical Data & Variants

Widths 1300–1800 mm for excavators 9–25 t. (Weights incl. mount)

1300 mm – 9–13 t · approx. 220–260 kg
Article Number Mount Weight
SL1300-070130-2300010 MS08 220 kg
SL1300-070130-2400010 MS10 220 kg
SL1300-070130-4200010 OQ45 222 kg
SL1300-070130-4300010 OQ60 242 kg
SL1300-070130-5500010 SW33 260 kg
1400 mm – 9–13 t · approx. 250–290 kg
Article Number Mount Weight
SL1400-070130-2300010 MS08 250 kg
SL1400-070130-2400010 MS10 250 kg
SL1400-070130-4200010 OQ45 252 kg
SL1400-070130-4300010 OQ60 272 kg
SL1400-070130-5500010 SW33 290 kg
1600 mm – 13–19 t · approx. 502–542 kg
Article Number Mount Weight
SL1600-130190-2400010 MS10 502 kg
SL1600-130190-2500010 MS21 510 kg
SL1600-130190-4300010 OQ60 508 kg
SL1600-130190-4400010 OQ65 510 kg
SL1600-130190-4600010 OQ70/55 530 kg
SL1600-130190-5500010 SW33 527 kg
SL1600-130190-5300010 SW48 542 kg
1800 mm – 19–25 t · approx. 773–785 kg
Article Number Mount Weight
SL1800-190250-4600010 OQ70/55 773 kg
SL1800-190250-5300010 SW48 785 kg

Typical Areas of Application

  • Demolition & Dismantling
  • Recycling / Sorting of construction debris, wood, metal
  • Civil Engineering & Landscaping

FAQ

Which mounts are available?
MS08, MS10, MS21 as well as OQ45, OQ60, OQ65, OQ70/55 and SW33/SW48.
Are the grapples tiltrotator-compatible?
Yes, ideal for tiltrotators due to their compact, stable design.
What materials are the grapples made of?
Shells/reinforcements made of HB 400, cutting edges made of HB 500.

👉 Configure your ROCCA® sorting grapple now – in 1300–1800 mm for 9–25 t.
