ROCCA Planierbalken RXPB190 mit Schaufel und Rolle
ROCCA · Anbaugeräte

ROCCA Grading Beam - For 10.1 to 19.0 Tonnes - RXPB190

Art.-Nr. PB1500-110180-2300010
Order item 7-10 weeks delivery time
Breite
1500mm
1800mm
2000mm
2400mm
Ausführung
Mit Schaufel
Mit Rolle
Aufnahme
MS08
OQ45
OQ60
OQ65
SW33
SW48
Regular price3.626,00 €
Fragen zum Produkt? Unser Chat-Assistent hilft sofort weiter — einfach unten rechts öffnen.
Beschreibung
Technische Daten

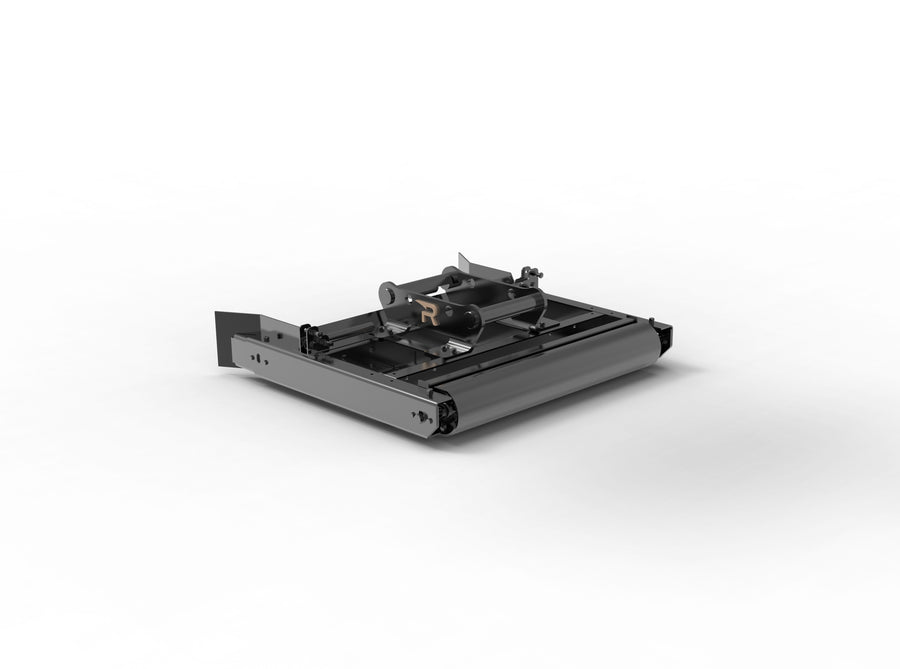

ROCCA Grading Beam RXPB190 – for excavators from 10.1 to 19.0 t

One base unit, two ways of working: the ROCCA grading beam grades with the blade and compacts with the roller. Both versions use the same bolt-on interchangeable adapter – you choose the version directly when ordering.

Blade or roller1500 to 2400 mmSix mountings

🔄 One bolt pattern – interchangeable mounting

The grading beam uses the modular RL10 mounting system. The adapter plate is bolted on and can be swapped for another – the same attachment runs on different machines. The price shown already includes the selected mounting.

→ View interchangeable mountings separately

Versions

  • With blade – for grading, levelling and spreading material.
  • With roller – for grading with light compaction in a single pass.
Technical data
Width Version Item number Weight
1500 mm With bucket PB1500-110180-… 240 kg
1800 mm With bucket PB1800-110180-… 280 kg
2000 mm With bucket PB2000-110180-… 300 kg
2400 mm With bucket PB2400-110180-… 345 kg
1500 mm With roller PW1500-110180-… 225 kg
1800 mm With roller PW1800-110180-… 267 kg
2000 mm With roller PW2000-110180-… 295 kg
2400 mm With roller PW2400-110180-… 355 kg

Weights without mounting bracket. The last digits of the item number indicate the selected adapter plate.

FAQ

Can I switch from blade to roller later?
Yes. Blade and roller kits are available separately; the base unit stays the same.
Which mountings are possible?
MS08, OQ45, OQ60, OQ65, SW33 and SW48. If you need a different mounting bracket for this excavator class, get in touch.
Is the mounting included in the price?
Yes, the price shown covers the attachment including the selected adapter plate.
