Genuine Lehnhoff SW 10 sorting spoon HSL 15 - for 10.0 to 15.0 tons
Genuine Lehnhoff sorting float HSL 15 with Lehmatic adapter sw 10zum sieve out of coarse material.
Selection of 2 versions:
1. Rectangular bars
Floor made of solid rectangular grid rods 40x25mm, 60mm distance, knife 250x30mm (500 HB), side wear sidelines (400 HB), with forklear holders and Esco tooth tips Ultralok U30S
2. With round bars:
Floor with round bars D30 made of 400HB steel, 60mm brick spacing, knife 250x30mm (500 HB), side wear sidelines (400 HB), with forklear holders and Esco Tears UltraC U30S
The designation HSL 15 stands for the weight classes or excavators categories 10.0-15.0T. If your mini excavator has a operating weight between 10,0-15,0 Tons reached and equipped with an MS quick -change system, then it fits bucket on your excavator.
Properties of the sieve spoon:
Cutting width in mm: 1200mm
Content SAE in m³: 0.800m³
Teeth (404f): 5
Weight (approx.) In KG: 646
Other properties of the sorting spoon
For separating coarse and fine material of all kinds.
- Robust spoon construction in a double-conical construction
- Burned out hole floor made of 400 HB steel, hole spacing approx. 50 mm
- Knife from Lehborit 5000 (500 HB)
- Sized, hardened Lehnhoff toothing system
Many bucket Available directly from warehouse - inquire!

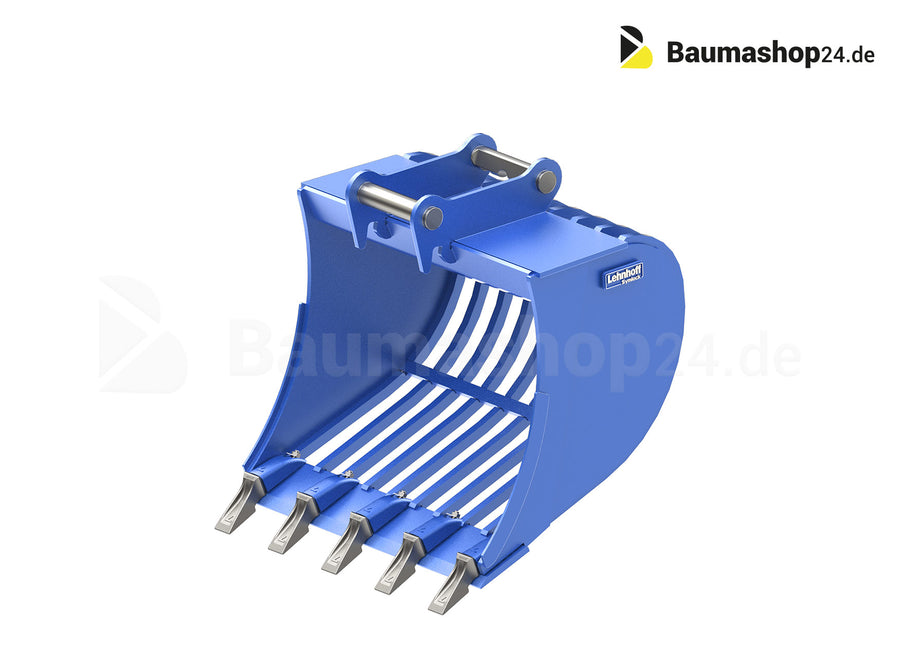

Image only serves as a view! It shows a different recording.
