Genuine Lehnhoff SW 10 sorting spoon - for 15.0 to 19.0 tons HSL 20
Genuine Lehnhoff sorting float HSL 20 with Lehmatic adapter SW 10 to sieve coarse material.
Selection of 2 versions:
1. Rectangular rods
Floor made of solid rectangular grid rods 40x25mm, 60mm distance, knife 250x30mm (500 HB), side wear sidelines (400 HB), with forklear holders and Esco tooth tips Ultralok U30S
2. With round bars:
Floor with round bars D40 made of 400HB steel, 60mm brick gap, knife 250x30mm (500 HB), side wear sidelines (400 HB), with forklear holders and Esco Tears UltraC U30S
The designation HSL 20 stands for the weight classes or excavators categories 15.0-19.0T. If your mini excavator has a operating weight between 15,0-19,0 Tons reached and equipped with an MS quick -change system, then it fits bucket on your excavator.
Properties of the sieve spoon:
Cutting width in mm: 1200mm
Content SAE in m³: 0.940m³
Teeth (404f): 5
Weight (approx.) In kg: 710
Other properties of the sorting spoon
For separating coarse and fine material of all kinds.
- Robust spoon construction in a double-conical construction
- Burned out hole floor made of 400 HB steel, hole spacing approx. 50 mm
- Knife from Lehborit 5000 (500 HB)
- Sized, hardened Lehnhoff toothing system
Many bucket Available directly from warehouse - inquire!

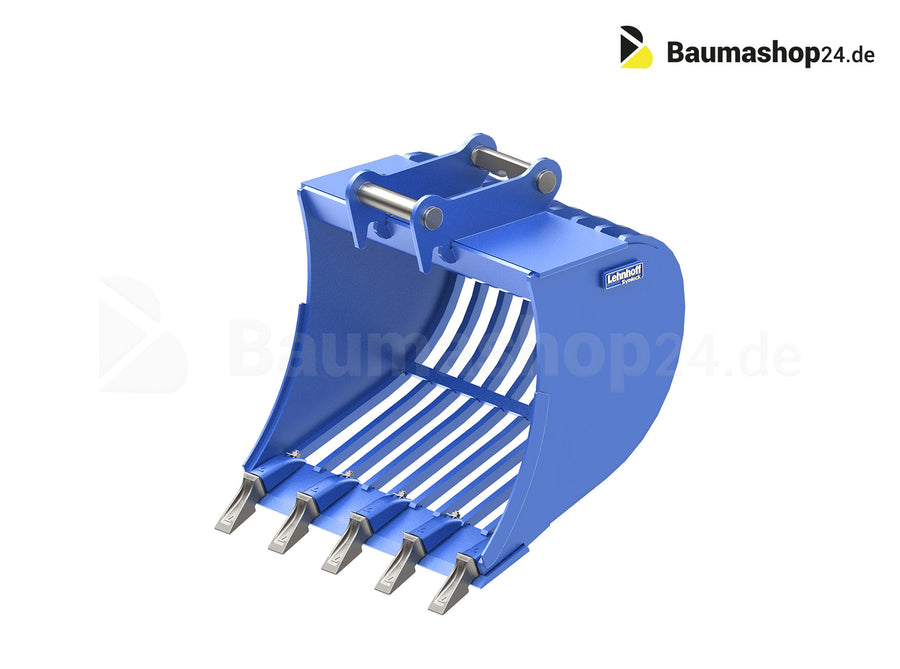

Image only serves as a view! It shows a different recording.
