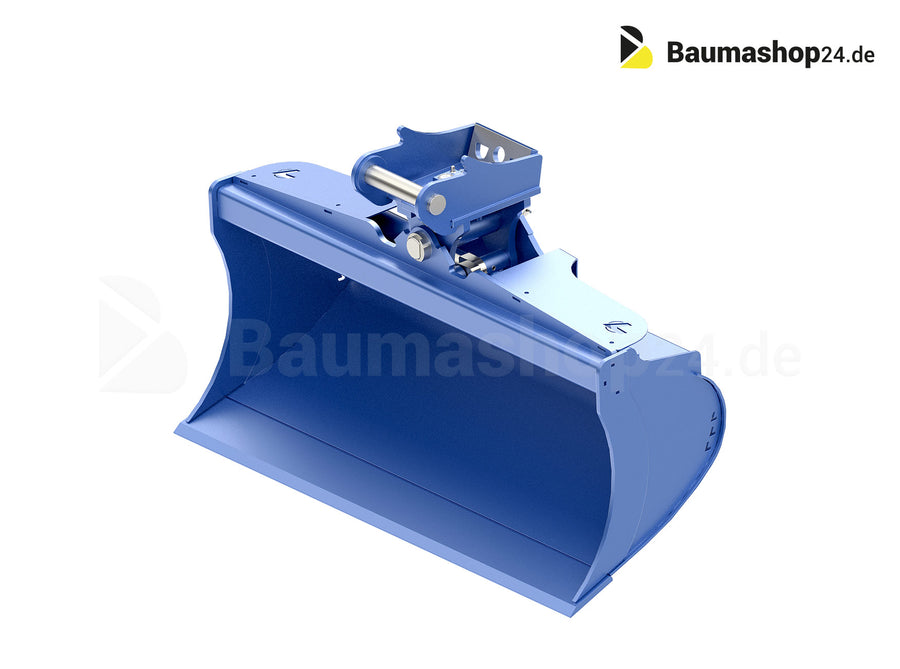

Lehnhoff SW03 Ditch Clearing Bucket - For 2.6 to 5.0 tons

Original Lehnhoff MG 4 trench clearing bucket in proven premium quality with MS03 recording of 1000mm width.

swiveling version, 2 x 45° swivel angle, 1 hydraulic cylinder, load-holding valve, load-holding valve, hydraulic connections on the swivel head, knife 150x16mm made of 500 HB steel and side cutters made of 400 HB steel, lateral water drainage holes.

The designation MG 4 stands for the weight classes or excavator categories 2.6-5.0t. If your mini excavator has an operating weight between 2.6-5.0 tons and is equipped with an MS03 quick coupler system, then this bucket will fit your excavator.

In this article you can choose between the article numbers 270021, 269219, 267962 and 270022.

Features of Trench Space Shovel:

Cutting width in mm: 1000mm

Content SAE in m³: 0.150m³

Weight (approx.) in kg: 172kg

Properties of the premium spoon variant

The Lehnhoff ditch clearing buckets in the 0.5 - 6 ton class have received an update. Not only their shape, but also the stability has been optimized, both in the pivoting and in the rigid version. All 4 MG bucket classes have been adapted to the current generation of mini excavators and, in particular, take account of the requirements for universal use

• New, market-oriented design
• Extended spoon bottom
• Rounded shape for better filling and earthmoving properties
• 2 x 45° swivel angle
• Protected cylinder
• Protected hydraulic connections
• Reinforced swivel head for better power distribution and longer service life
• Strong version with 2 cylinders from 5t

Many spoons available directly from stock - ask for availability!
