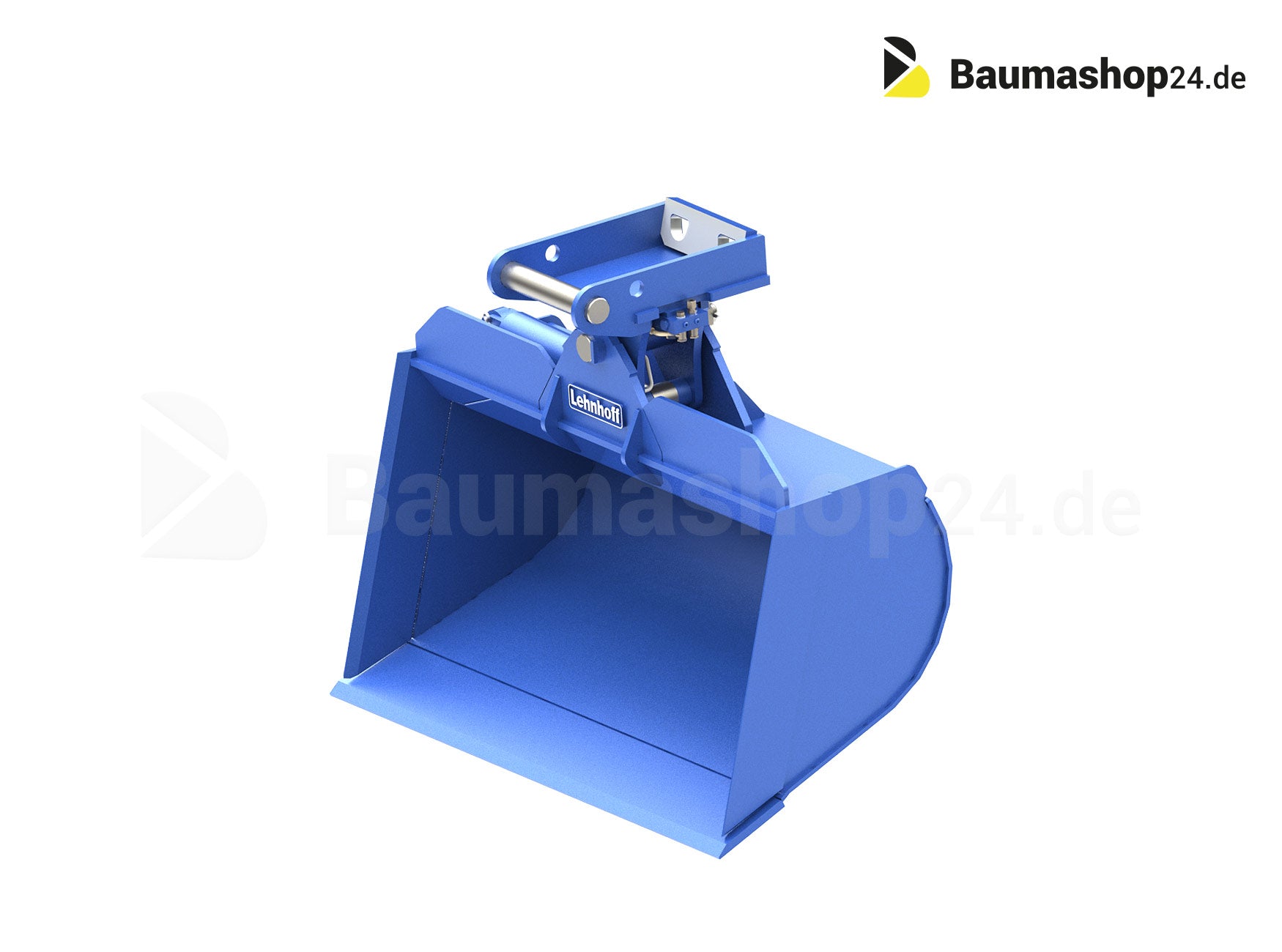

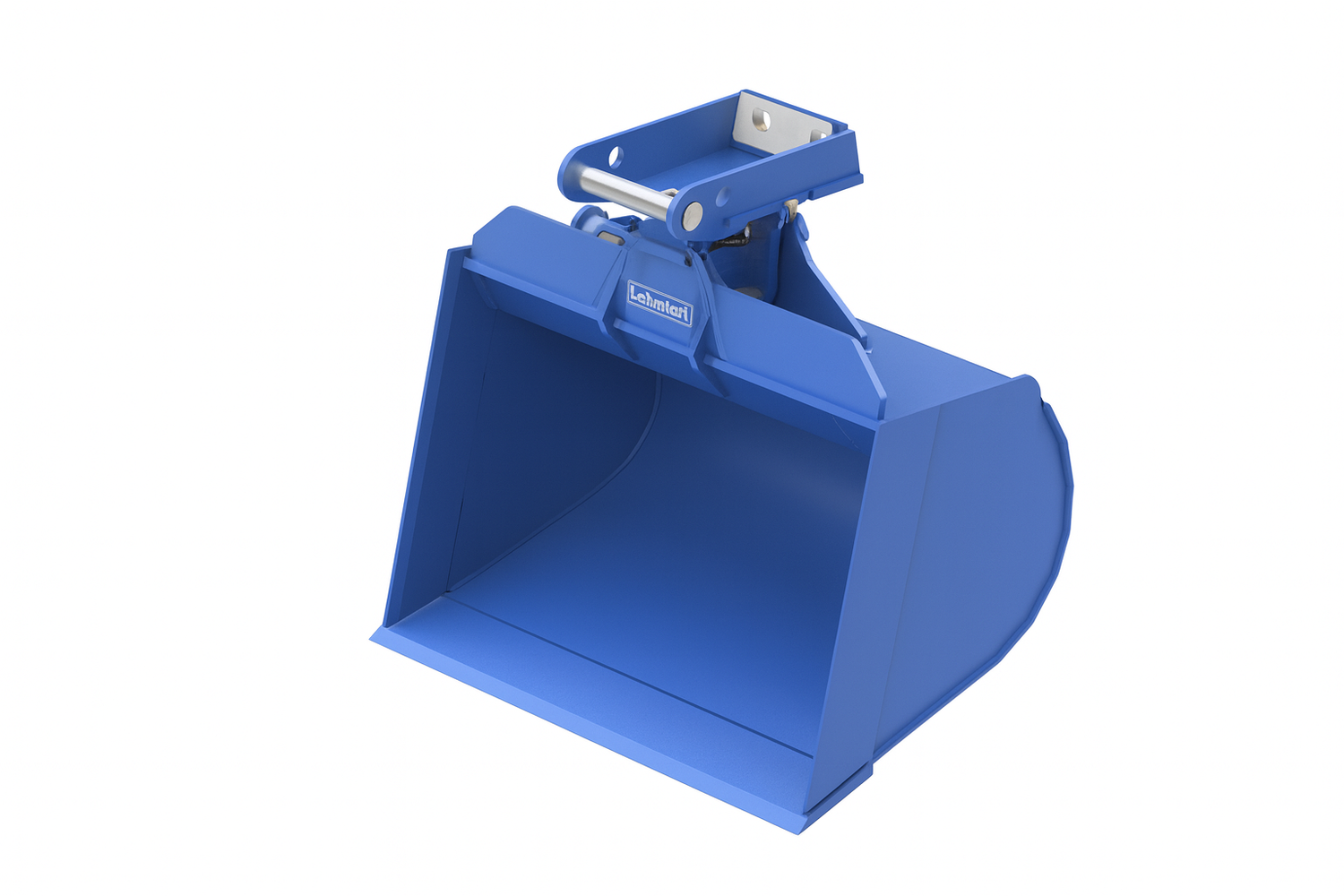

Lehnhoff SW08 swivel bucket - For 8.1 to 10.0 tons

Original Lehnhoff Hydro universal bucket with Lehmatic adapter SW08

The Hydro general purpose bucket is made for a wide range of soil conditions as it can work its way through any material. The swivel bucket, also known as the embankment bucket, is used for a wide range of applications such as excavation, profiling of trenches and embankment work.

The Hyro universal bucket CB 10 GH is designed for excavators in the 8.1 to 10 tonne weight class . So if your mini excavator is in the weight class and has an SW08 connector , this will fit your construction machine.

Product information on the Hydro universal spoon:

-1 hydraulic cylinder , 2x45° swivel angle, load-holding valve, hydraulic connections on the swivel head, knife 200x20mm and side cutters made of 500 HB steel.

Characteristics of the slope bucket:

Cutting width in mm: 1400mm

Content SAE in m³: 0.560m³

Swivel head: C1

Weight (approx.) in kg: 500

Article number: 210399

Many spoons available directly from stock - ask for availability!

Phone: +497832974733666

or

send us an email to info@baumashop24.de
