Lehnhoff

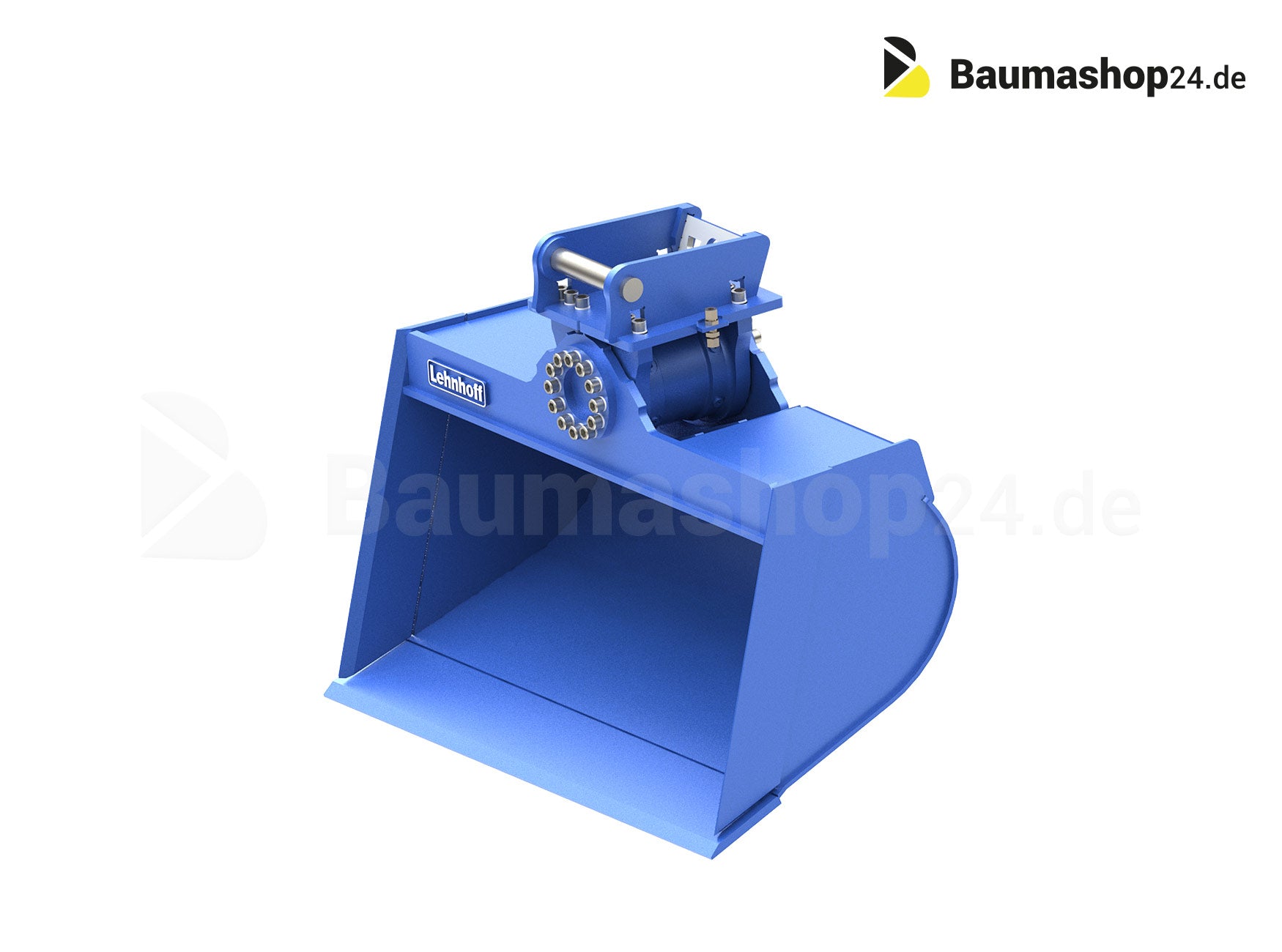

Genuine Lehnhoff Hydro -Universal Open - for 3.6-6.0 tons - MU 4 GM
Art.-Nr. 238867
Lehnhoff

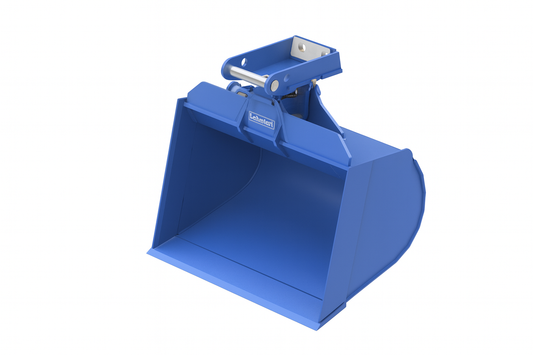

Genuine Lehnhoff SW03 Hydro-universal spoon- for 3.6 to 6.0 tons- MU 4 GH
Regular priceFrom2.932,00 €
Unit price
Unavailable
Delivery time on request
Description
Genuine Lehnhoff Universal Open Mu 4 GM with SW03 to siege coarse material.
With hydraulic rotary drive, 2 x 45 ° swivel angle, hydraulic lock. on
Swivel head, knife 150x16mm and side cuts made of 500 HB steel
| Cutting width | Content SAE in m³ | Swivel head | Weight in KG |
| 1000 mm | 0,200 | BV 125 | 255 |
| 1200 mm | 0,230 | BV 125 | 285 |
Other properties of the deep spoon
- Good filling properties and easy emptying through LH-double-conical construction
- Floor made of 400 HB steel, protruding with protected weld seam
- Knife from Lehborit 5000 (500 HB)
- Skinry-forged Lehnhoff toothing system
- Optionally with Lehmatic or Symlock adapter
- Including spoon transport bottle
- Approx. 20% lower weight compared to the basic version
- Lower fuel consumption = more economic work
