Original Lehnhoff Grabenräumlöffel - Für 10,0-12,0 Tonnen - HG 15 SH-SW08
Lehnhoff

Genuine Lehnhoff Ditch bucket - for 10.0-12.0 tons- HG 15 SH-SW08

Art.-Nr. 242873
7.998,00 €
Delivery time on request
Fit Guarantee
Premium Quality
Personal Consultation
Cutting width
Not sure if it fits? Our chat assistant is ready to help — just open it in the bottom right.
Description

Genuine Lehnhoff Grabenlöffel HG 15 SH-SW08 with MS03 symptoms to pull out coarse material.

The designation HG 15 SH-SW08 for the weight classes or excavators categories 10.0-12.0T. If your mini excavator has a operating weight between 10,0-12,0 Tons reached and equipped with an MS quick -change system, then it fits bucket on your excavator.

Properties of the deep spoon:

Cutting width Content SAE in m³ Swivel head Weight in KG
1600 mm 0,440 H11 577
1800 mm 0,500 H11 590


Other properties of the deep spoon

  • Good filling properties and easy emptying through LH-double-conical construction
  • Floor made of 400 HB steel, protruding with protected weld seam
  • Knife from Lehborit 5000 (500 HB)
  • Skinry-forged Lehnhoff toothing system
  • Optionally with Lehmatic or Symlock adapter
  • Including spoon transport bottle
  • Approx. 20% lower weight compared to the basic version
  • Lower fuel consumption = more economic work

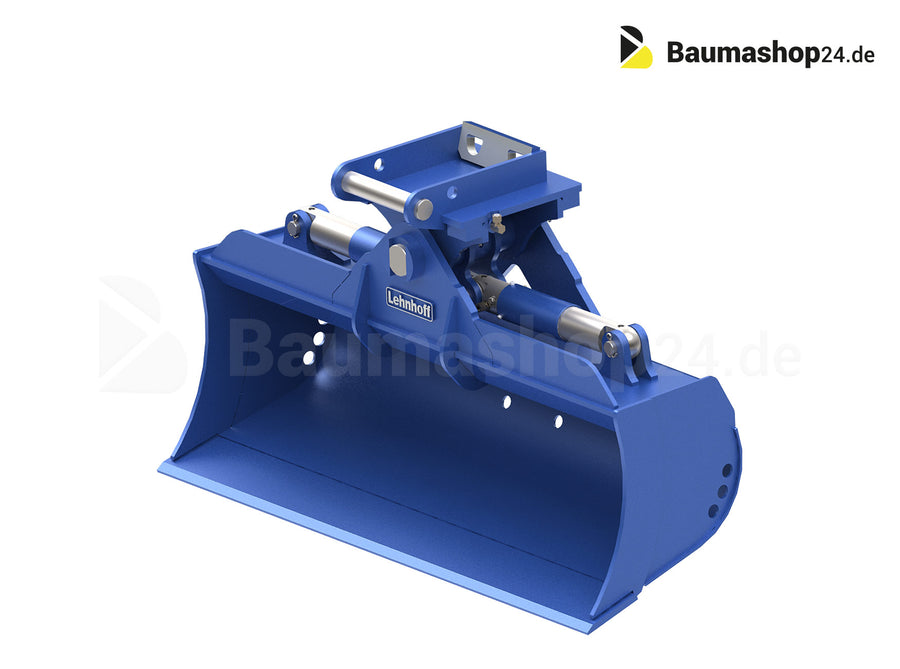

Image only serves as a view! It shows a different recording.
