Kinshofer Erdbrer - for 3.0 to 5.0 tons - 4500max

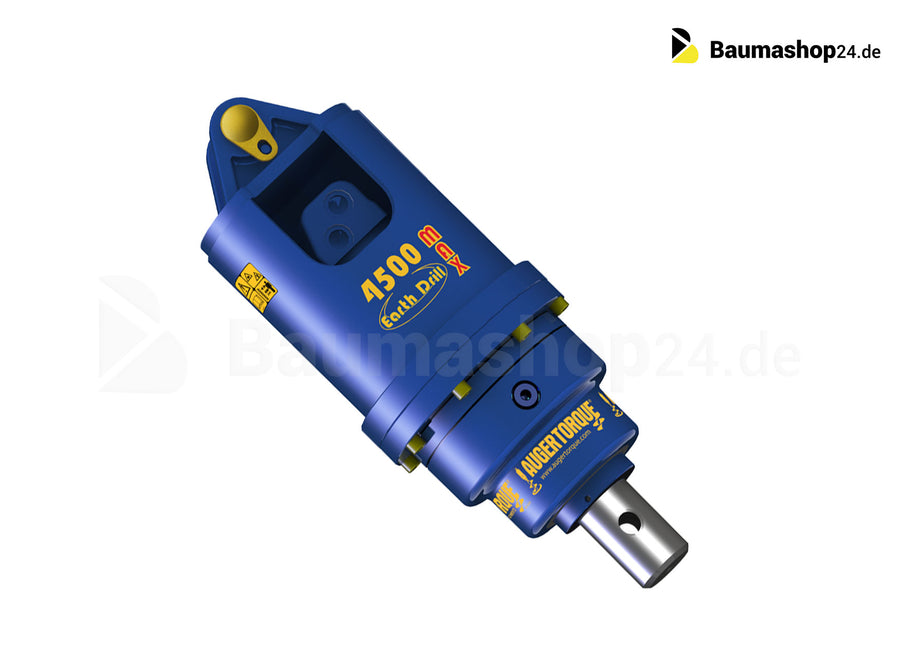

Kinshofer Erdbrer 4500max

The earth drill for your mini excavator in the Weight class 3.0 to 5.0 tons is the perfect economic and tailor -made solution to drill.

Additional info:

Fixed shaft shaft (NDS) for more security and lower downtimes, since the shaft cannot detach from the rest of the mechanism.

Blue -colored hydraulic oil inside the drive serves as an indicator of service times and facilitates leaks.

Robustly constructed head panels with forged steel taps take up the high torsional forces that occur during the drilling process without signs of fatigue.

Slightly accessible lubrication points.

Properties of the drill:

• Shaft: 65 mm round
• Speed ​​(rpm): 41 - 81
• Height (mm): 665
• Diameter (mm): 244
• Weight (approx.) In kg: 75
• Suitable drilling snails: S4 100 - 900



Many products available directly from warehouse - ask for availability!
