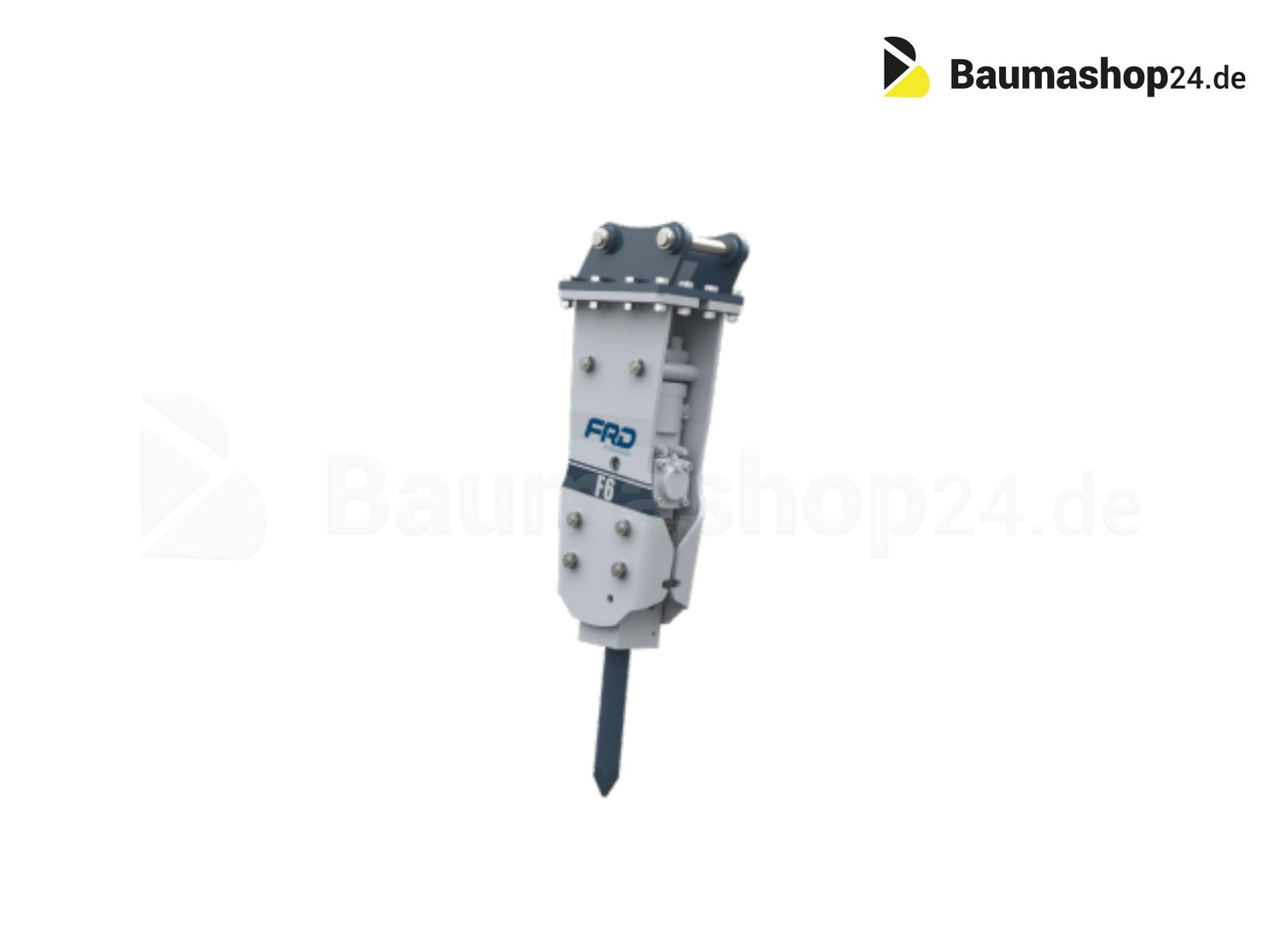

FRD Jackhammer - for 3.5 to 10.0 tons - FT F6
Art.-Nr. FTF6
Fit Guarantee
Premium Quality
Personal Consultation
Not sure if it fits? Our chat assistant is ready to help — just open it in the bottom right.
Description
FRD Jackhammer Ft f6
F series - Suitable for weight class 3.5 - 10.0 tons.
FT = standard housing with flange connection
Technical data:
| Service weight | kg | 365 |
| Height with insertion tool | mm | 1450 |
| Work pressure min - max |
MPA | 10 - 14 |
| Oil requirement min - max |
l/min | 50 - 90 |
| Number of stroke for 1 rpm |
bpm |
550 - 950 |
| Beating energy | Joules | 884 |
| Insert tool Ø | mm | 75 |
| Power length insertion tool | mm | 450 |
| Weight insertion tool | kg | 21,5 |
| Hose inside Ø HD, nd | mm | 12 |
| Guaranteed volume | db (a) | 129 |
| Carrier | T | 3,5-10 |
https://cdn.shopify.com/s/files/1/0576/3609/3986/files/FX25_-data.pdf?v=1671181271https://cdn.shopify.com/s/files/1/0576/3609/3986/files/FX25_-data.pdf?v=1671181271
¹Weight including insertion tools, hose set, bolt set or medium-sized cultivation plate (according to the CE guidelines)
Many other Hydraulic Hems from FRD available from us in the online shop. First class quality at the best prices! If you have any questions or you are unsure which Jackhammer You need you for your machine, you are welcome to contact us and we will be happy to help you!
