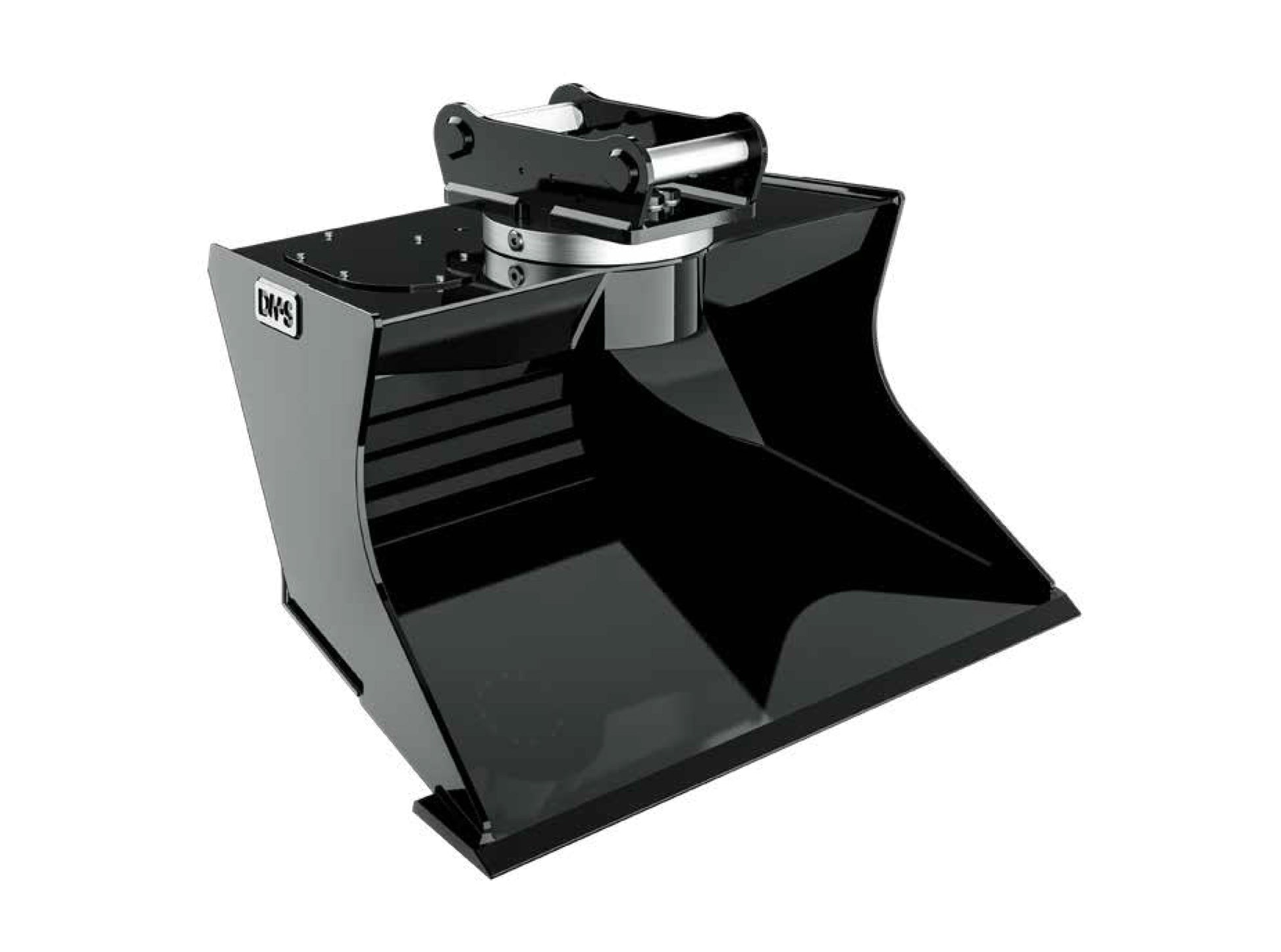

DMS Rotary Grab RL40100 for 2.5t - 4.0t

DMS Rotator Bucket RL40100 – Flexible and powerful for 2.5-4.0t excavators

The DMS Rotator Bucket RL40100 is the ideal attachment for mini excavators in the 2.5 to 4.0 tonne weight class. Thanks to the integrated rotation function, this bucket enables precise work even in confined spaces – perfect for gardening and landscaping, earthworks, and construction projects.

Cutting widths:

• Cutting width: 900 mm
• Bucket length: 670 mm
• Bucket height: 533 mm

Suitable excavator models (2.5 - 4 t)

• Kubota: U27-4, KX037-4
• Volvo: ECR35D, ECR40D
• Takeuchi: TB225, TB235-2
• Wacker Neuson: EZ26, EZ28
• JCB: 26C-1, 35Z-1
• Komatsu: PC26MR-5, PC35MR-5
• Caterpillar: 302.7 CR, 303 CR

Advantages of the DMS Rotator Bucket RL40100:

• Compatible with excavators from 2.5-4.0t
• Integrated rotator for 360° rotation
• High stability and wear resistance
• Optimized cutting edge for clean stripping and leveling
• Ideal for professional construction companies and municipalities

TIP: If you have a Powertilt or a quick coupler with tilt function, you can level without restrictions in combination with the DMS rotator bucket!

Technical data:

• Weight [kg]: 115
• Cutting width [mm]: 1000
• Volume [l]: 155
• Max. output speed [rpm]: 11-12
• Max. torque [Nm]: 1337
• Rec. flow rate rotation [l/min]: 16-20
• Operating pressure rotation max. [bar]: 210

Made from high-quality, wear-resistant steel, the RL40100 impresses with a long service life and low maintenance.
