DMS RL2590 Rotator Grab for 1.0t - 2.5t

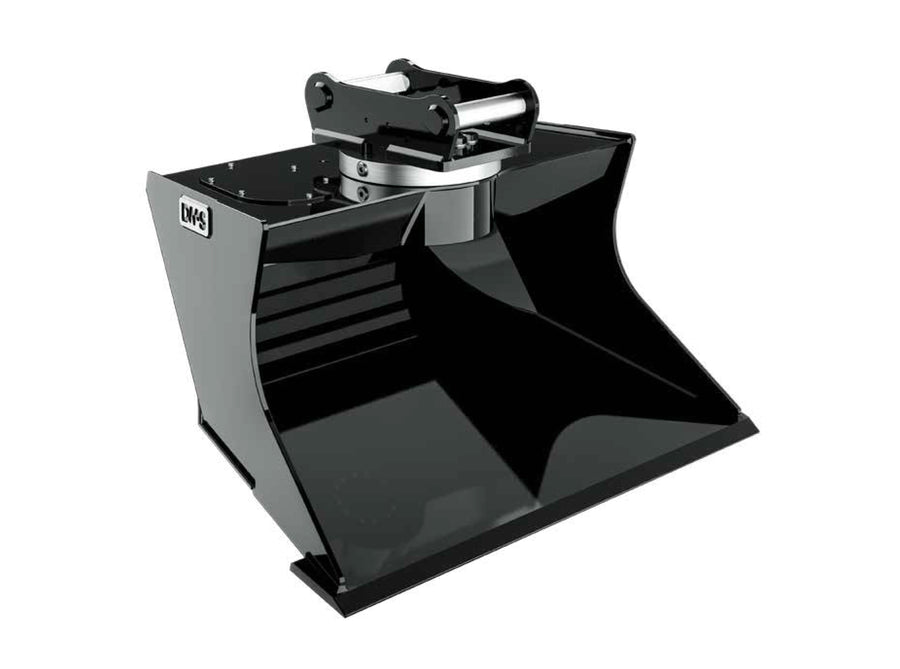

DMS Rotator Bucket RL2590 – Flexible and powerful for 1.0–2.5t excavators

The DMS Rotator Bucket RL2590 is the ideal attachment for mini excavators in the 1.0 to 2.5 ton weight class. Thanks to the integrated rotation function, this bucket enables precise work even in confined spaces – perfect for gardening and landscaping, earthworks, and construction projects.

Advantages of the DMS Rotator Bucket RL2590:

• Compatible with excavators from 1.0–2.5t
• Integrated rotator for 360° rotation
• High stability and wear resistance
• Optimized cutting edge for clean stripping and leveling
• Ideal for professional construction companies and municipalities

TIP: If you have a Powertilt or a quick coupler with a tilt function, then in combination with the DMS rotator bucket, you can level without restrictions!

Suitable excavator models (1.0 - 2.5 tons)

• Kubota: KX015-4, KX018-4
• Volvo: EC15E, EC18E
• Takeuchi: TB210R, TB215R
• Wacker Neuson: ET18, ET140
• JCB: 8008 CTS, 8010 CTS
• Komatsu: PC14R-3, PC18MR-3
• Caterpillar: 301.5, 301.7

Technical Data:

• Weight [kg]: 101
• Cutting width [mm]: 900
• Volume [l]: 100
• Max. output speed [rpm]: 9–10
• Max. torque [Nm]: 1337
• Recommended oil flow for rotation [l/min]: 12–16
• Operating pressure for rotation max. [bar]: 210

Manufactured from high-quality, wear-resistant steel, the RL2590 convinces with a long service life and low maintenance.
