Premium Line Bobcat 323 Bolzen-/Buchsensatz – Reparatursatz Minibagger Reparatursatz Ersatzteil
Premium Line

Bobcat 323 Pin and Bushing Kit – Mini Excavator Repair Kit

Probably 3-5 days of delivery time
Aftermarket
Premium Quality
Personal Consultation
Not sure which position? Our chat assistant is ready to help — just open it in the bottom right.

Which position do you need?

First select the assembly group, then the exact position on your machine

–
No position selected
–
Description

Bobcat 323 Pin and Bushing Set – Repair Kits by Position Number

The Bobcat 323 pin and bushing set includes position-based repair kits for various bearing and cylinder points on the boom, lift arm, dipper arm, bucket, and bell crank of your Bobcat 323 mini excavator. The kits are designed so you can repair individual pivot points precisely – without a complete replacement.

Important: Many positions are available in different kit variants – depending on the serial number. Please make sure to match your kit to the serial number of your machine.

Advantages of the Bobcat 323 Repair Kits

  • Perfect fit for Bobcat 323
  • Position-based kits – targeted replacement instead of a full overhaul
  • High-quality pins, bushings, and seals
  • Reduces play and prevents follow-up damage at bearing points
  • Ideal for maintenance and repair

Application Areas

  • Swing cylinder
  • Boom linkage
  • Lift arm
  • Lift arm cylinder
  • Dipper arm
  • Dipper arm cylinder
  • Bucket
  • Bucket cylinder
  • Bucket linkage
  • Bell crank

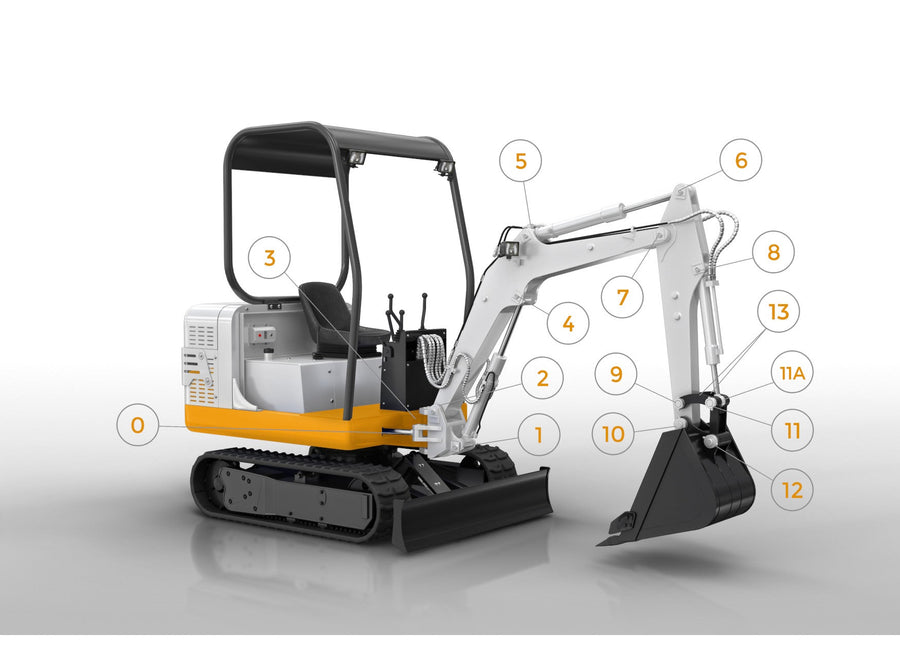

Scope of Delivery per Position Number

The scope of delivery depends strictly on the selected position number and the corresponding serial number.

Position 00 · Swing Cylinder
Serial number: A01711001 and higher
Kit content: 1 bushing, 1 pin
Serial number: A9JZ11001 and higher
Kit content: 1 bushing, 1 pin
Serial number: 224511001 and higher
Kit content: 1 bushing, 1 pin
Serial number: 562411001 and higher
Kit content: 1 bushing, 1 pin
Position 01 · Lift Arm Cylinder
Serial number: A01711001 and higher
Kit content: 1 bushing, 1 pin
Serial number: A9JZ11001 and higher
Kit content: 1 bushing, 1 pin
Serial number: 224511001 and higher
Kit content: 1 bushing, 1 pin
Serial number: 562411001 and higher
Kit content: 1 bushing, 1 pin
Position 02 · Boom Linkage
Serial number: A01711001 and higher
Kit content: 4 bushings, 1 pin
Serial number: A9JZ11001 and higher
Kit content: 4 bushings, 2 seals, 1 pin
Serial number: 224511001 and higher
Kit content: 4 bushings, 2 seals, 1 pin
Serial number: 562411001 and higher
Kit content: 4 bushings, 2 seals, 1 pin
Position 03 · Lift Arm
Serial number: A01711001 and higher
Kit content: 6 bushings, 2 pins
Serial number: A9JZ11001 and higher
Kit content: 4 bushings, 1 pin
Serial number: 224511001 and higher
Kit content: 4 bushings, 1 pin
Serial number: 562411001 and higher
Kit content: 4 bushings, 1 pin
Position 04 · Lift Arm Cylinder
Serial number: A01711001 and higher
Kit content: 1 pin
Serial number: A9JZ11001 and higher
Kit content: 1 pin
Serial number: 224511001 and higher
Kit content: 1 pin
Serial number: 562411001 and higher
Kit content: 1 pin
Position 05 · Dipper Arm Cylinder
Serial number: A01711001 and higher
Kit content: 1 pin
Serial number: A9JZ11001 and higher
Kit content: 1 pin
Serial number: 224511001 and higher
Kit content: 1 pin
Serial number: 562411001 and higher
Kit content: 1 pin
Position 06 · Dipper Arm Cylinder
Serial number: A01711001 and higher
Kit content: 1 bushing, 1 pin
Serial number: A9JZ11001 and higher
Kit content: 1 bushing, 1 pin
Serial number: 224511001 and higher
Kit content: 1 bushing, 1 pin
Serial number: 562411001 and higher
Kit content: 1 bushing, 1 pin
Position 07 · Dipper Arm Cylinder
Serial number: A01711001 and higher
Kit content: 2 bushings, 2 seals, 1 pin
Serial number: A9JZ11001 and higher
Kit content: 2 bushings, 2 seals, 1 pin
Serial number: 224511001 and higher
Kit content: 2 bushings, 2 seals, 1 pin
Serial number: 562411001 and higher
Kit content: 2 bushings, 2 seals, 1 pin
Position 08 · Dipper Arm
Serial number: A01711001 and higher
Kit content: 1 pin
Serial number: A9JZ11001 and higher
Kit content: 1 pin
Serial number: 224511001 and higher
Kit content: 1 pin
Serial number: 562411001 and higher
Kit content: 1 pin
Position 09 · Bucket Cylinder
Serial number: A01711001 and higher
Kit content: 2 bushings, 2 seals
Serial number: A9JZ11001 and higher
Kit content: 2 bushings, 2 seals
Serial number: 224511001 and higher
Kit content: 2 bushings, 2 seals
Serial number: 562411001 and higher
Kit content: 2 bushings, 2 seals
Position 10 · Bucket
Serial number: A01711001 and higher
Kit content: 2 bushings, 2 seals, 1 pin
Serial number: A9JZ11001 and higher
Kit content: 2 bushings, 2 seals, 1 pin
Serial number: 224511001 and higher
Kit content: 2 bushings, 2 seals, 1 pin
Serial number: 562411001 and higher
Kit content: 2 bushings, 2 seals, 1 pin
Position 11 · Bucket Linkage
Serial number: A01711001 and higher
Kit content: 2 bushings, 2 seals
Serial number: A9JZ11001 and higher
Kit content: 2 bushings, 2 seals
Serial number: 224511001 and higher
Kit content: 2 bushings, 2 seals
Serial number: 562411001 and higher
Kit content: 2 bushings, 2 seals
Position 11A · Bucket Cylinder
Serial number: A01711001 and higher
Kit content: 1 bushing, 2 seals
Serial number: A9JZ11001 and higher
Kit content: 1 bushing
Serial number: 224511001 and higher
Kit content: 1 bushing
Serial number: 562411001 and higher
Kit content: 1 bushing
Position 12 · Bucket
Serial number: A01711001 and higher
Kit content: 2 bushings, 2 seals, 1 pin
Serial number: A9JZ11001 and higher
Kit content: 2 bushings, 2 seals, 1 pin
Serial number: 224511001 and higher
Kit content: 2 bushings, 2 seals, 1 pin
Serial number: 562411001 and higher
Kit content: 2 bushings, 2 seals, 1 pin
Position 13 · Bell Crank
Serial number: A01711001 and higher
Kit content: 2 bell cranks
Serial number: A9JZ11001 and higher
Kit content: 2 bell cranks
Serial number: 224511001 and higher
Kit content: 2 bell cranks
Serial number: 562411001 and higher
Kit content: 2 bell cranks

Compatible Model

Bobcat 323

Note

Please check the correct position number as well as the serial number of your machine before ordering. Depending on the serial number, the kit contents may vary.

🔧 Practical Tip: If noticeable play is present, it is recommended to replace connected bearing points at the same time (e.g., bucket and bucket cylinder) to prevent renewed wear.
