Premium Line Bobcat 316 Bolzen-/Buchsensatz – Reparatursatz Minibagger Reparatursatz Ersatzteil
Premium Line

Bobcat 316 Pin and Bushing Kit – Mini Excavator Repair Kit

Probably 3-5 days of delivery time
Aftermarket
Premium Quality
Personal Consultation
Not sure which position? Our chat assistant is ready to help — just open it in the bottom right.

Which position do you need?

First select the assembly group, then the exact position on your machine

–
No position selected
–
Description

Bobcat 316 Pin and Bushing Kit – Repair Kits by Position Number

The Bobcat 316 pin and bushing kit is a precision-fit repair kit for various bearing and cylinder positions on the dipper arm, bucket, and bucket linkage of your Bobcat 316 mini excavator. The kits are configured by position, enabling targeted repair of individual bearing points.

The individual repair kits differ in scope of delivery depending on the installation position. Please be sure to select the correct position number.

Advantages of the Bobcat 316 Repair Kits

  • Precision fit for Bobcat 316
  • Position-specific kits – targeted replacement instead of full overhaul
  • High-quality pins, bushings, and seals
  • Reduces play and prevents consequential damage at bearing points
  • Ideal for maintenance and repair

Areas of Application

  • Dipper arm
  • Dipper arm cylinder
  • Bucket
  • Bucket cylinder
  • Bucket linkage

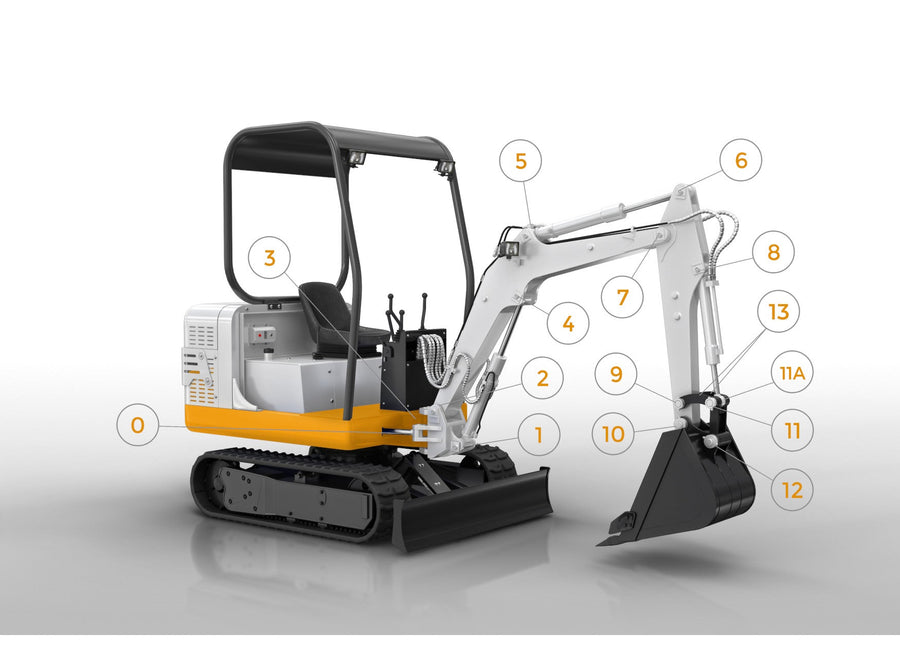

Scope of Delivery by Position Number

The scope of delivery depends strictly on the selected position number.

Position 06 · Dipper arm cylinder
Kit contents: 1 bushing, 1 pin
Position 08 · Dipper arm
Kit contents: 1 bushing, 1 pin
Position 09 · Bucket cylinder
Kit contents: 2 bushings, 2 seals, 1 pin
Position 10 · Bucket
Kit contents: 2 bushings, 2 seals, 1 pin
Position 11 · Bucket linkage
Kit contents: 1 bushing, 2 seals, 1 pin
Position 11A · Bucket cylinder
Kit contents: 1 bushing, 2 seals
Position 12 · Bucket
Kit contents: 2 bushings, 2 seals, 1 pin

Compatible Model

Bobcat 316

Note

Please verify the correct position number using the spare parts diagram or the existing component position on your machine before ordering.

🔧 Practical tip: If visible play is present, it is recommended to replace related bearing points together (e.g., bucket and bucket cylinder) to avoid premature wear.
