SG2030 sorting grapple with rotator- 1.0 to 2.0 tons

SG2030 sorting grapple with rotator- 1.0 to 2.0 tons

SKU:DS40020300

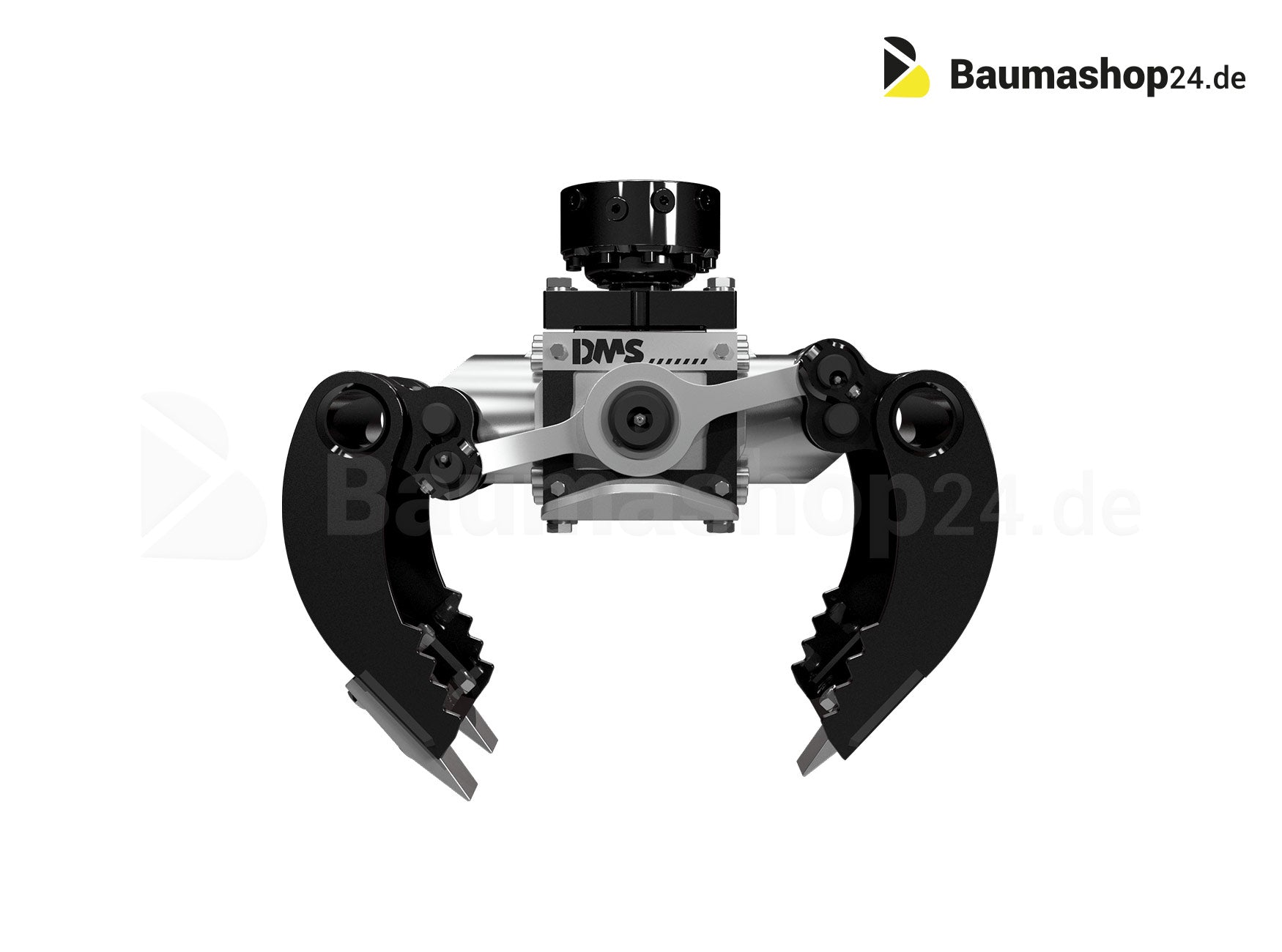

DMS SG2030 sorting grab for weight class 1.0 to 2.0 tons

The range of tasks to be performed with an excavator is constantly expanding . Whether setting natural stones, removing tree roots, loading green waste or moving bulk materials - the DMS sorting grab is used everywhere as an all-rounder .

The supporting element and heart of the gripper, the patented hydraulic cylinder , enables a minimal risk of failure , a low overall height and compactness and a low dead weight with extreme robustness . Increase the utilization of your machine with this versatile attachment while minimizing your work and time.

FYI: The product will be shipped without an adapter plate. If necessary, please feel free to contact us.


>>> Product sheet SG 2030 <<<

Technical specifications:

  • Weight (without rotator) [kg]: 95
  • Rotator weight [kg]: 20
  • Operating pressure [bar]: 220
  • Closing force [kN]: 16
  • Torque [Nm]: 1000
  • Filling capacity [l]: 20

>>> Brochure sorting gripper <<<


DMS attachments in our shop. We have the entire DMS range. If you have not found what you are looking for in our online shop, please contact us.
