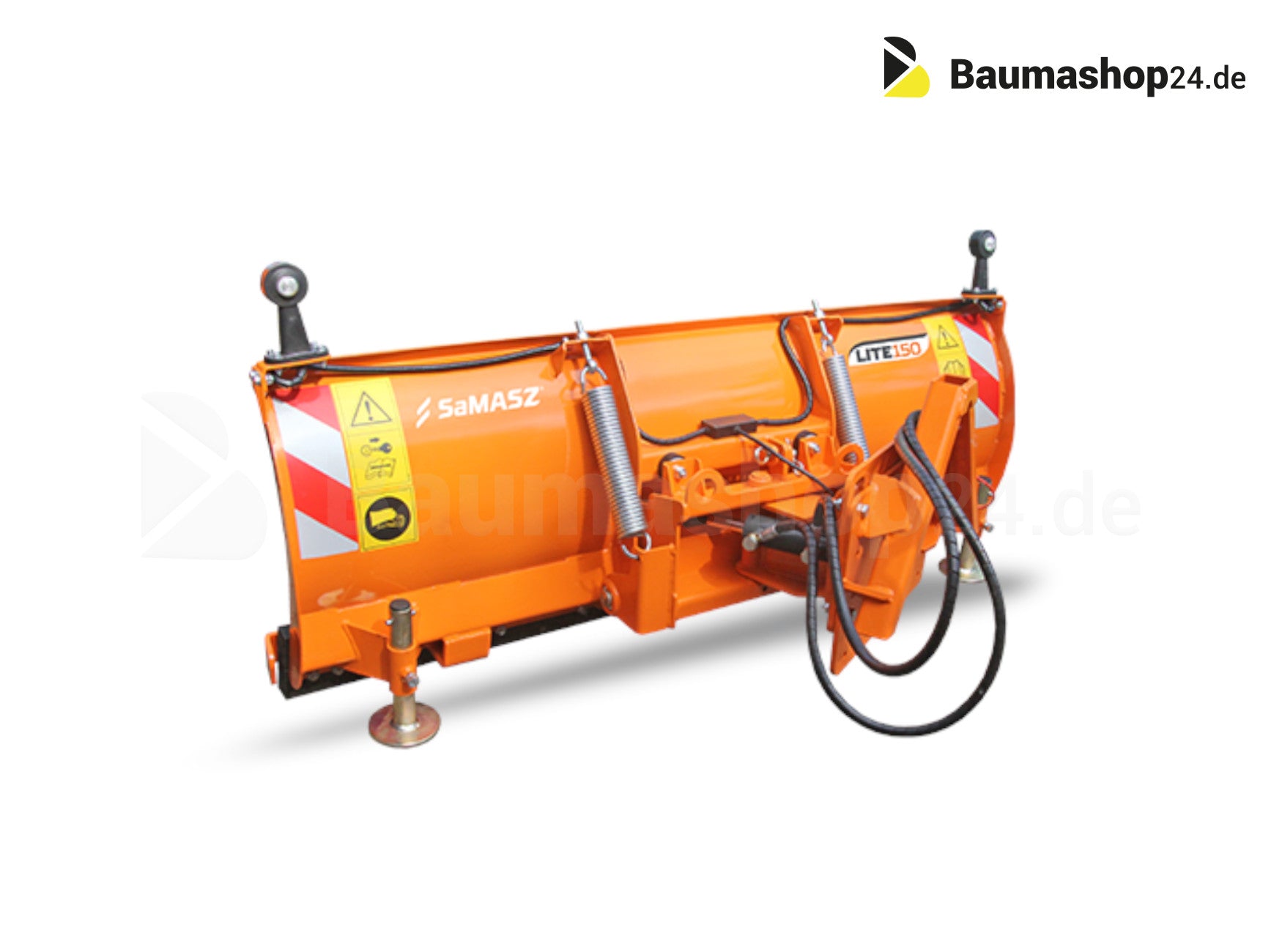

LITE 130 SaMASZ Saphir snow plow for wheel loaders up to 1.9t

LITE single blade snow plow with automatic spring mechanism and Saphir SaMASZ bar

SaMASZ SNOW PLOWS:

From the super-light to the super-heavy series: SaMASZ snow plows are used in a variety of ways on city and country roads, sidewalks and parking lots. A comprehensive range of adapters and add-on frameworks enables use on almost any carrier vehicle.

Due to the wide range of possible uses, the robust design and the many possible special equipment, SaMASZ snow plows are ideal devices for clearing snow in winter service.

Weight class: Super light class ~ up to 1.9 tons

LITE basic equipment : Rolled shield body • Infinitely variable hydraulic tilting • 1 tilting cylinder (Lite 130 / Lite 150) • 2 tilting cylinders (Lite 180) • Automatic spring mechanism (2 springs) • Suspension to choose from (see page 29) • Leveling • Skids • 2 scraper strips - rubber and steel (reversible) • LED lighting 12 V or 24 V • Electrical connection 12 V (cigarette lighter) • Parking support • Edge deflector • KTL layer + powder coating.

Technical specifications:

working width max./min. [cm]: 130 / 118
Transport width max./min. [cm]: 139 / 126
Share height [cm]: 56
Scraper parts: 1
Collision protection: Spring automatic
Attack angle: 23°
hydraulic tilting: up to 27°
required number of hydraulic connections: 1 x DW
Dimensions [cm] length / width / height: 57 / 139 / 70
Weight [kg]: 115
