Lehnhoff
Genuine Lehnhoff Hydro -Universal Open - for 23.0 -28.0 tons - HU 30 RH
Art.-Nr. 234662
Regular price14.306,00 €
Unit price
Unavailable
Delivery time on request
Fit Guarantee
Premium Quality
Personal Consultation
Not sure if it fits? Our chat assistant is ready to help — just open it in the bottom right.
Description
Genuine Hydro-universal openly HU 30 RH with MS03 Symlock absorption to sieve coarse material.
The designation HU 30 RH for the weight classes or excavators categories 23.0 -28.0 t. If your mini excavator has a operating weight between 23.0 -28.0 Tons reached and equipped with an MS quick -change system, then it fits bucket on your excavator.
Properties of the Ditch bucket :
| Cutting width | Content SAE in m³ | Swivel head | Weight in KG |
| 1600 mm |
1,370 | H22 -K | 1349 |
| 1800 mm | 1,550 | H22 -K | 1431 |
Other properties of the Ditch bucket
- Good filling properties and easy emptying through LH-double-conical construction
- Floor made of 400 HB steel, protruding with protected weld seam
- Knife from Lehborit 5000 (500 HB)
- Skinry-forged Lehnhoff toothing system
- Optionally with Lehmatic or Symlock adapter
- Including spoon transport bottle
- Approx. 20% lower weight compared to the basic version
- Lower fuel consumption = more economic work

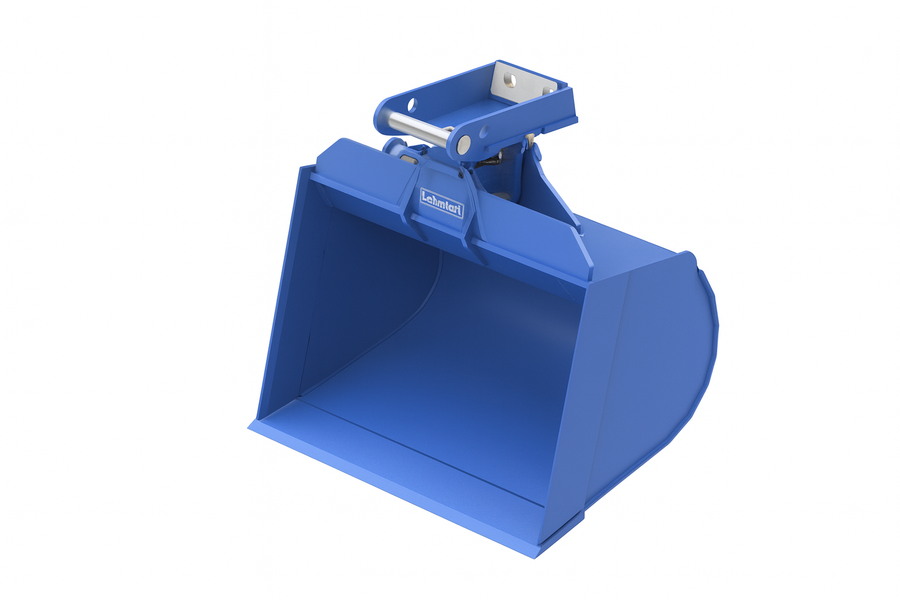

Image only serves as a view! It shows a different recording.
