Genuine Lehnhoff SY08 sorting spoon CSL 10- for 8.1 to 10.0 tons
Genuine Lehnhoff sorting float CSL 10 with MS08 Sympober intake to sieve coarse material.
Selection of 2 versions:
1. Rectangle grid bars
SyMlock adapter SY 08, Floor made of solid rectangular grid rods 30x20mm, 60mm brick spacing, knife 200x25mm (500 HB), with fork holders and Esco tips Ultralok U20S. With Esco flush holder
2. With round bars:
SyMlock adapter sy 03, Knife 150x16mm (500 HB), floor made of round bars D20, hole width 60mm, teeth 400 f
The designation CLS10 stands for the weight classes or excavator categories 8.1-10.0t. If your mini excavator has a operating weight between 8,1-10,0 Tons reached and equipped with an MS quick -change system, then it fits bucket on your excavator.
Properties of the sieve spoon:
Cutting width in mm: 1000mm
Content SAE in m³: 0.460m³
Teeth (404f): 5
Weight (approx.) In kg: 295
Other properties of the sorting spoon
For separating coarse and fine material of all kinds.
- Robust spoon construction in a double-conical construction
- Burned out hole floor made of 400 HB steel, hole spacing approx. 50 mm
- Knife from Lehborit 5000 (500 HB)
- Sized, hardened Lehnhoff toothing system
Many bucket Available directly from warehouse - inquire!

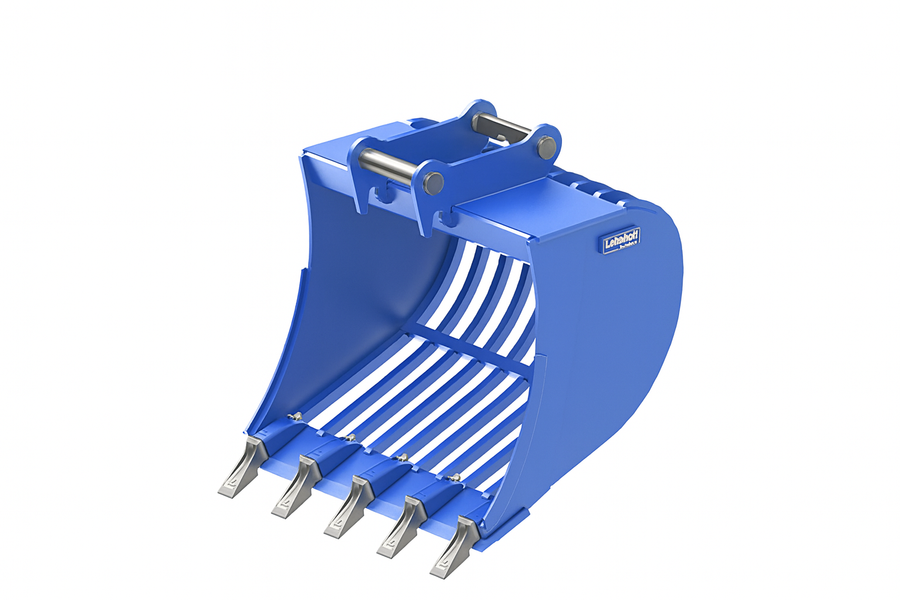

Image only serves as a view! It shows a different recording.
