excav PILOT – mobile 3D GNSS-assisted system for excavators and construction machinery

Art.-Nr. excav
16.750,00 €
Probably 4-7 days of delivery time
Fit Guarantee
Premium Quality
Personal Consultation
Not sure if it fits? Our chat assistant is ready to help — just open it in the bottom right.
Description

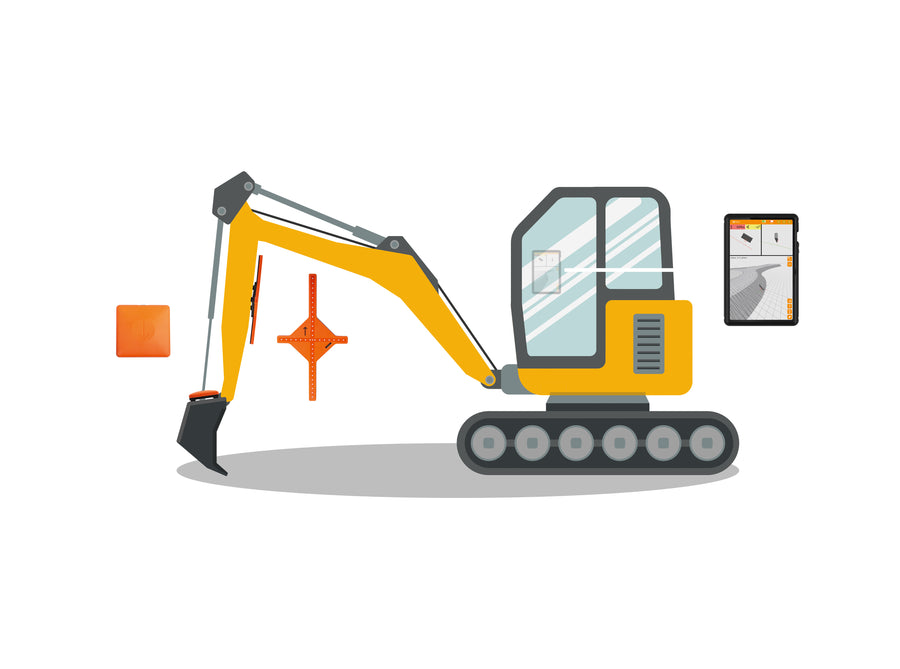

excav PILOT is your mobile 3D GNSS assistance system for precise earthworks with maximum efficiency. Developed for flexible use on excavators and other construction machinery, excav PILOT delivers exact position data and visual guidance in real-time – without complicated installation or lengthy calibration.

Advantages at a Glance

  • One sensor is enough: No cable clutter, no additional components
  • Quick assembly: Magnetic attachment and ready to go in minutes
  • High precision: ±15 mm accuracy thanks to modern GNSS technology
  • 3D data capable: Supports DTM, LandXML and PDF files
  • RTK correction: Usable via NTRIP or local base station
  • Expandable: Can be upgraded with additional accessories or service packages

Technical Highlights

Component Description
GNSS Sensor Mobile precision sensor with real-time measurement
Tablet Unit Robust Android tablet with 3D display software
LED Cross Optical deviation display for millimeter-precise guidance
Transport Case Sturdy hard-shell case for safe transport
Connection RTK-enabled SIM card or base station (optional)

Areas of Application

  • Civil engineering and sewerage
  • Gardening and landscaping
  • Municipal and road construction
  • Earthmoving & excavation

Why excav PILOT?

With excav PILOT, you work faster, more precisely, and more sustainably. The system reduces machine movements, minimizes wear, and gives you completely new control over your construction site.

Service & Accessories

  • excav Care Service: Maintenance and support package for worry-free operation
  • SIM Card Service: for RTK correction data and online support
  • Additional Units: Sensor frame, additional sensor or tablet holder

Scope of Delivery

Included: Sensor, tablet, LED cross, accessories, case and documentation

Application & Video

In this video, you can see how the system works and why excav PILOT also makes your construction site more efficient:
