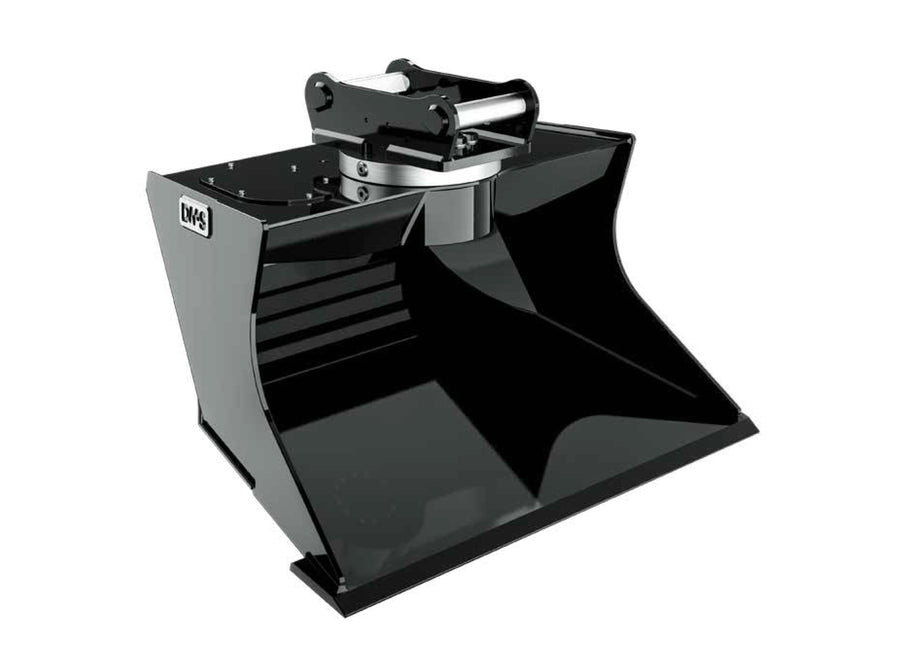

DMS Rotator Bucket RL100140 for 7.0t - 10.0t

DMS Rotary Bucket RL100140 – Flexible and Powerful for 7.0-10.0t Excavators

The DMS Rotary Bucket RL140100 is the ideal attachment for mini excavators in the 7.0 to 10.0 tonne weight class. Thanks to the integrated rotation function, this bucket allows precise work even in confined spaces – perfect for gardening and landscaping, earthworks, and construction projects.

Cutting Widths:

• Cutting width: 1400 mm
• Bucket length: 1043 mm
• Bucket height: 814 mm

Compatible Excavator Models (7.0 - 10.0 t)

• Kubota: KX080-4, U82-4
• Volvo: ECR88D, ECR88F
• Takeuchi: TB290, TB370
• Wacker Neuson: ET90, EZ80
• JCB: JCB 90Z-2, JCB 100C-2
• Komatsu: PC78US-10, PW60-7
• Caterpillar: CAT 308 CR, PC88MR-11

Advantages of the DMS Rotary Bucket RL100140:

• Compatible with excavators from 7.0-10.0t
• Integrated rotator for 360° rotation
• High stability and wear resistance
• Optimized cutting edge for clean stripping and leveling
• Ideal for professional construction companies and municipalities

TIP: If you have a Powertilt or a quick coupler with a tilt function, you can level without restrictions in combination with the DMS rotary bucket!

Technical Data:

• Weight [kg]: 305
• Cutting width [mm]: 1400
• Volume [l]: 220
• Max. output speed [rpm]: 10-11
• Max. torque [Nm]: 8460
• Rec. flow rate for rotation [l/min]: 50-60
• Operating pressure rotation max. [bar]: 210

Made of high-quality, wear-resistant steel, the RL100140 impresses with a long service life and low maintenance.

For OQ45, please specify whether OQ45-4 or OQ45-5 is required
