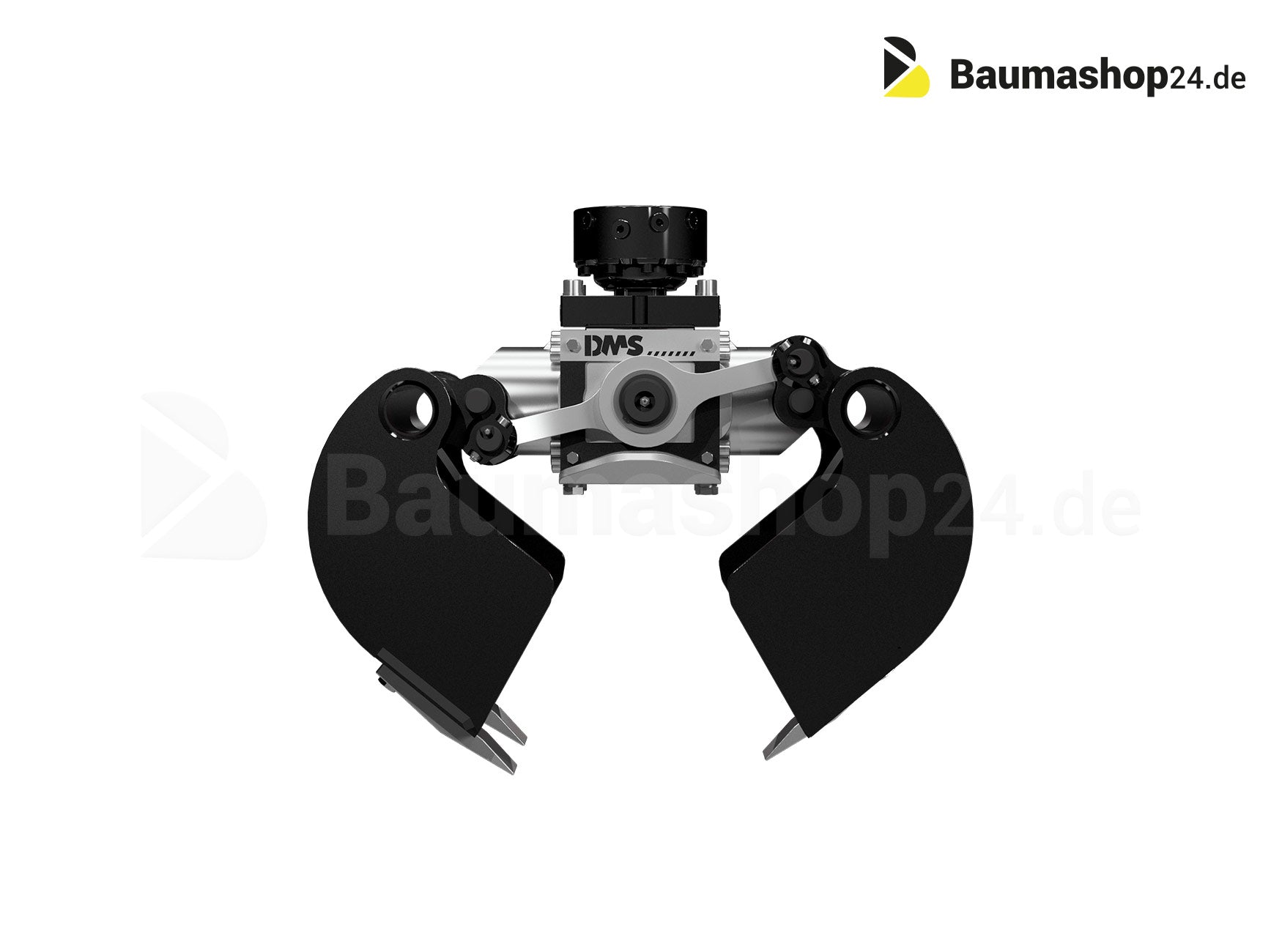

GL2035 digging grab cylinder lying - 1.0 to 2.0 tons

DMS GL2035 digging grab horizontal cylinder for weight class 1.0 to 2.0 tons

Popular especially for digging work in gardening and landscaping, when digging trenches and shafts in areas with limited space - but the digging grab with horizontal cylinder for carriers from 1-9 tons has also proven itself as an all-rounder in civil engineering.

Customers praise the precise picking up and placing of bulk goods and the sensitive reaction of the gripper, for example when sanding. When setting cisterns, the combination Grab Grab and Pipegrip is used. First, the shaft is excavated precisely, then the cistern is placed with the attached pipe grips. This combination means that a manhole hanger is no longer required. The digging grab is available both as a floating and as a fixed attachment

For information: The scope of delivery is noted in the product sheet.

>>> Product sheet GL 2035 <<<

Technical specifications:

• Weight (without rotator) [kg]: 115
• Rotator weight [kg]: 20
• Operating pressure [bar]: 250
• Closing force [kN]: 16
• Torque [Nm]: 1000
• Filling capacity [l]: 50

>>> Brochure Grab Grab <<<

DMS attachments in our shop. We have the entire DMS range. If you have not found what you are looking for in our online shop, please contact us.
