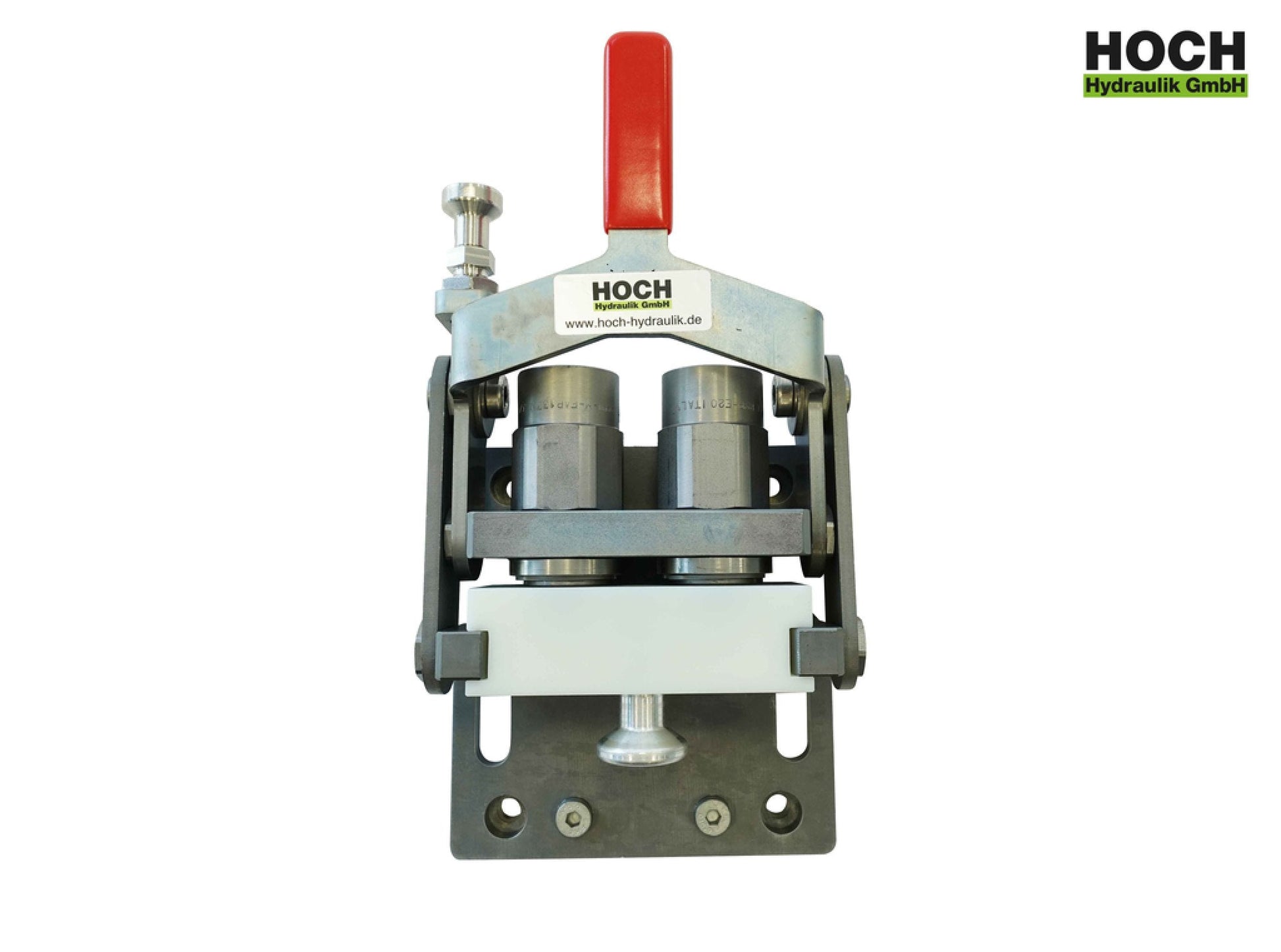

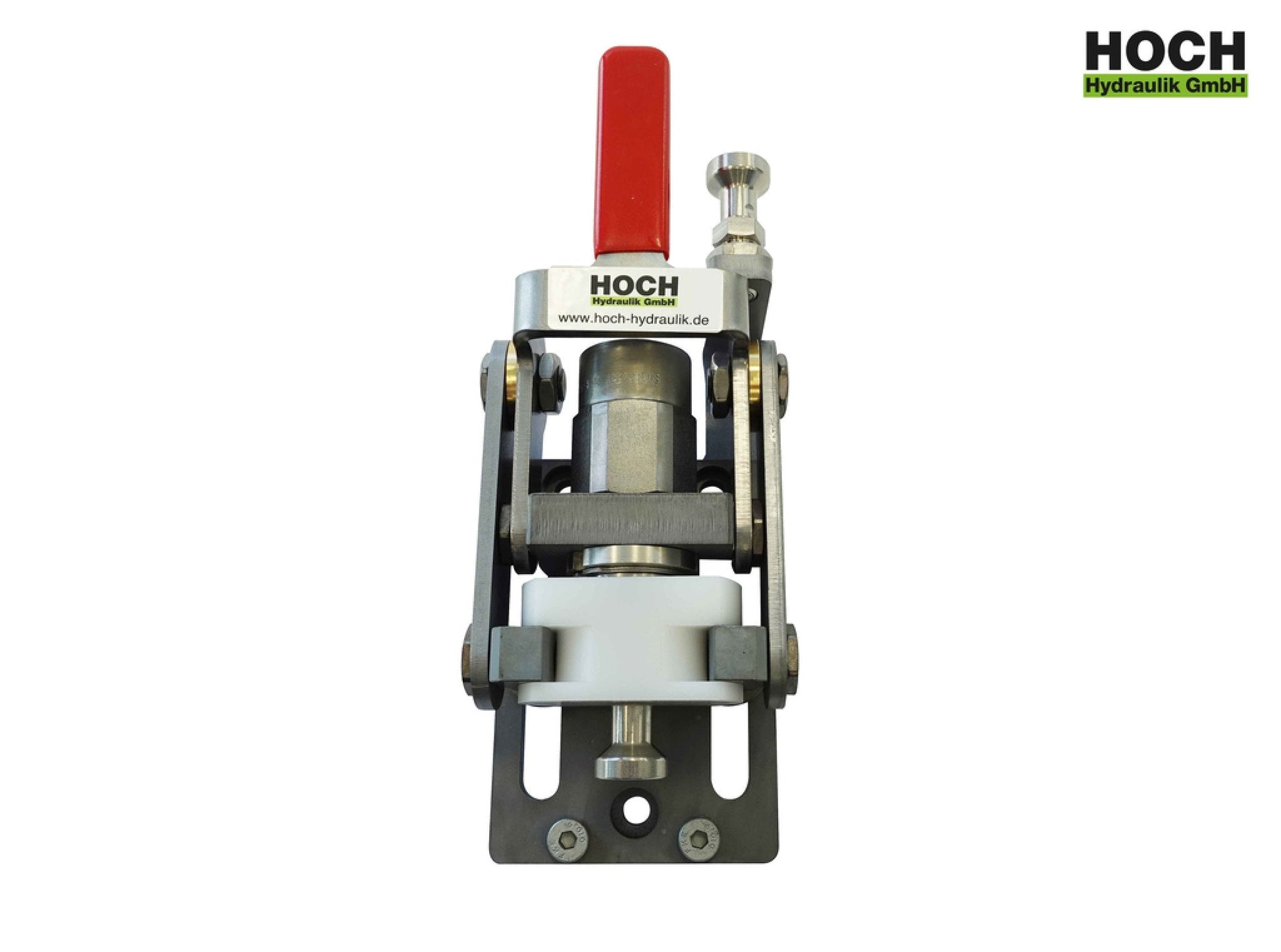

Taklock clutch / DN10 / machine side

Taklock PMK-10 series in our shop:

Available as a 1 or 2-series system

• Tonnage class: 1-3T
• Volume flow: 50-75l/min. With 3/5bar pressure loss
• Operating pressure: 330 bar
• Coupling type: 1

The PMK DN10 is mounted on the stem of the construction machine on the right and left. You need 2 pieces to enable two access and return.

The PMK DN 10 1-way For example, it can be covered with a swivel spoon that has the necessary tool panels as a connection.

The PMK DN 10 Twice For example, a sorting gripper that has the necessary tool panels can be connected to a sorting gripper.

The volume flow at the PMK-10 DN10 amounts 50-75l/min, at 3/5 bar pressure loss. The operating pressure is included 330 bar.

All PMK multi -group systems are for the use of hydraulic hammers and other demolition tools unreservedly possible.
