Do you need a new sieve spoon? MultaVex protects the excavator arm with a great screen performance!
What makes MultaVex shabby so special?

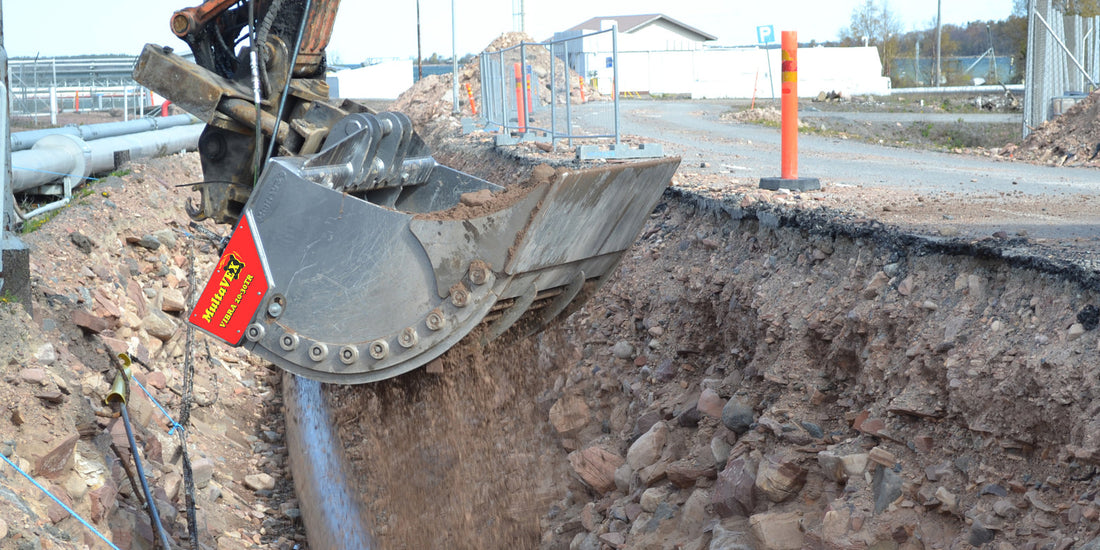

The bucket Having a vibrating property, which means that earth, gravel, sand or even tree stumps can be well sifted. A directly driven camshaft moves the rods in the bottom of the sieve spoon at different speeds.
Discover MultaVex sieve spoon here
What are the advantages of MultaVex Vibra Siebloon?
- The sieve size of 25mm can be converted to larger sizes in a few minutes. The size can also be reduced by special accessories. You can find more information about this under "Accessories"
- Low operating costs compared to other sieve spoons
- Depending on the model, the sieve spoon only requires 20-80 liters of hydraulic flow at 200 bar pressure-> the bucket Can also be used with tiltrotators!
- The frame material consists of 400HB steel
- Each model is also available as a so-called super model. These models are equipped with teeth and reinforcements
What other accessories are there?
Hardx bars
- Available thicknesses: 20, 25, 30, 35, 45 mm
Umbrella net
- For particularly precise sieve
- Sizes from 20 mm available on request
Screening elements
- Extra power to seven of fine material
- Sizes available on request
- Own models for concrete and soil
Does the MultaVEX sieve spoon make economically useful?
For this, the manufacturer himself gives a calculation example of the price stand of November 12, 2018:
Construction site preparation without a sieve spoon:
Transport of different soils to a landfill:
1m³ = 1.6 to
100m³ x 1.6 to/m³ x 50 €/to = € 8,000
Transport of 8 charges x 70 €/charge = 560 €
Delivery of filling earth and top floor for exchange:
Sour 80 to x 4 €/to = 320 €
Oberboden 80 to x 20 €/to = € 1,600
Transport of 4 charges x 70 €/charge = 280 €
Excavator work 8 hours x 60 €/hour = € 480
= Total costs: € 11,240
Construction site preparation with Vibra Multavex
Defection of various soils on the construction site:
Removal of the sorted stumps from the construction site: 70 €
Removal of sorted large stones: 70 €
Excavator work 8 hours x 60 €/hour = € 480
= Total costs: € 620
Which spoon fits your machine?
The sorting buckets are listed according to the weight class. So you have to pay attention to your machine weight when buying a spoon.
The right recording for your quick changer (example: Lehnhoff screw adapter frame SW03) can be ordered from us in the online shop. If you don't know which adapter frame you need, please feel free to contact us by phone.
Discover our sieve spoon range here
